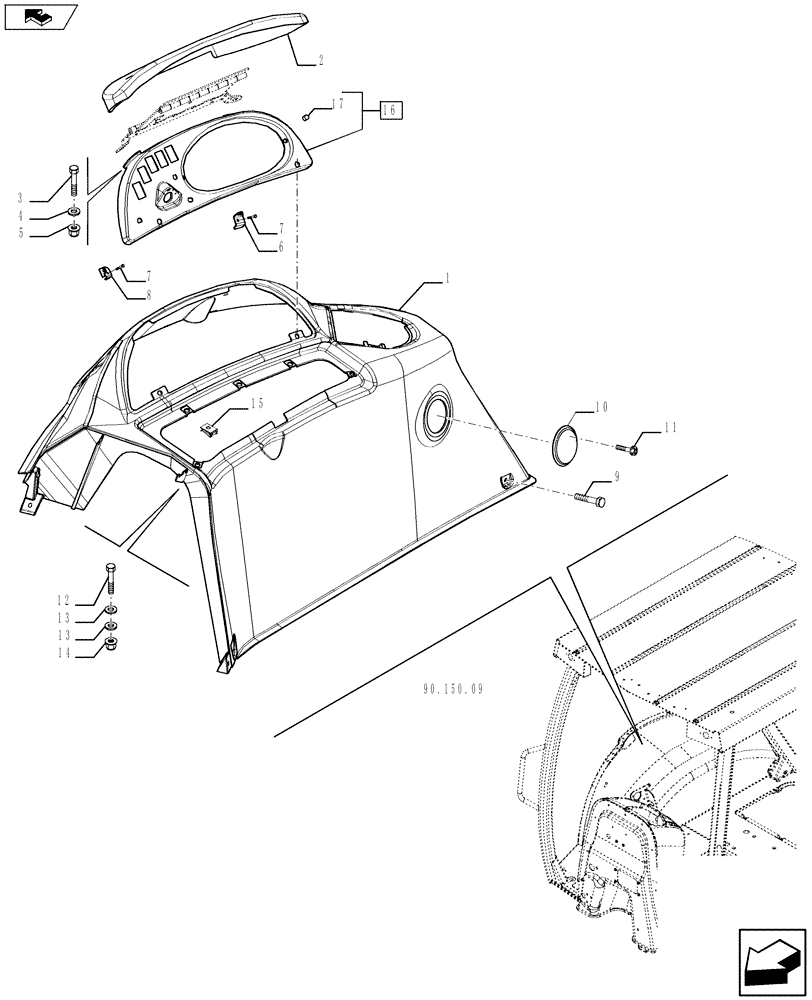

Запчасти Case 580SN (90.160.16) - VAR - 423001 - CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86992243

TRAY

Assy, Incl 12 - 13

1шт.

2

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

4

397025A2

TRIM

1шт.

5

131-869

SPRING NUT,Ret, J, #10-24

3шт.

6

231-14109

LOCK NUT,#10-24, GB

2шт.

7

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

8

833-40406

NUT,M6, U

2шт.

9

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

12

86992284

BUMPER,40-50 Durometer

4шт.

13

400077A1

PROTECTION STRIP,1300mm

1шт.
