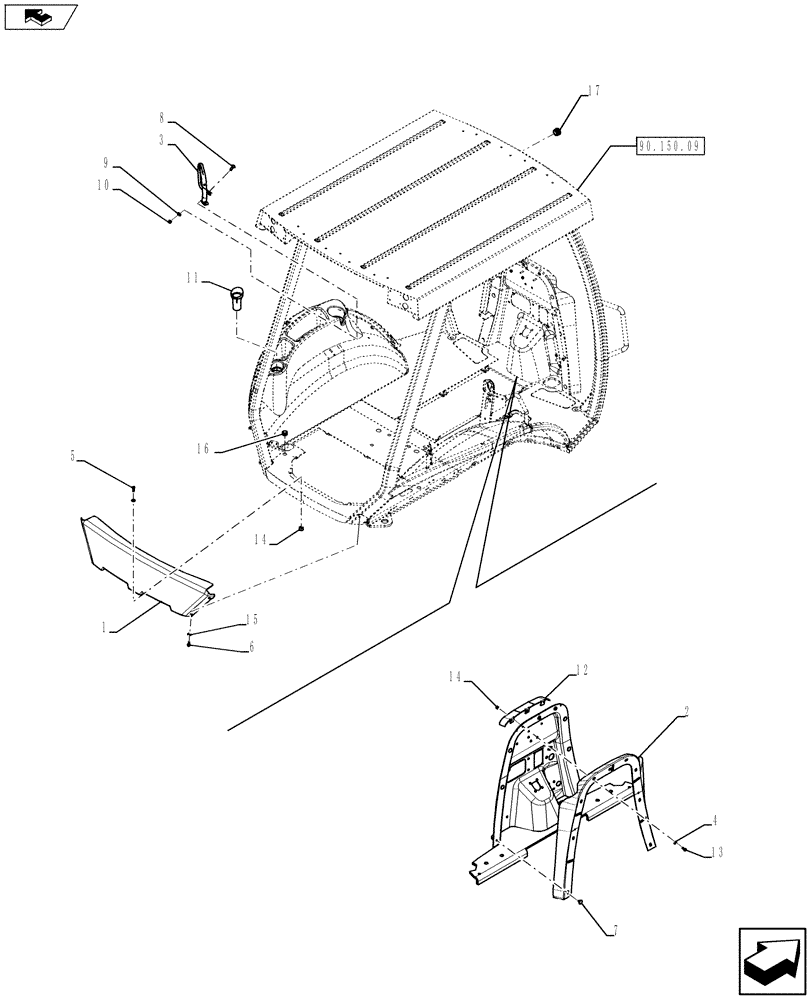

Запчасти Case 580SN (90.160.15) - VAR - 423001 - CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86992977

PANEL

1шт.

2

396938A3

MOLDING

1шт.

3

87627072

GRAB RAIL

1шт.

5

87310154

BOLT,Hex, M6 x 25, Cl. 8.8

1шт.

6

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

6

495-81001

WASHER,5/16"

3шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

9шт.

8

87310177

BOLT,Round Head, M10 x 25, Cl 8.8

2шт.

9

495-81267

WASHER,.469" x 1 1/2" x .134"

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

378742A3

INSERT

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

14

395478A3

BRACKET

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

16

382298A1

PLUG

2шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

17

411549A1

PLUG

1шт.
