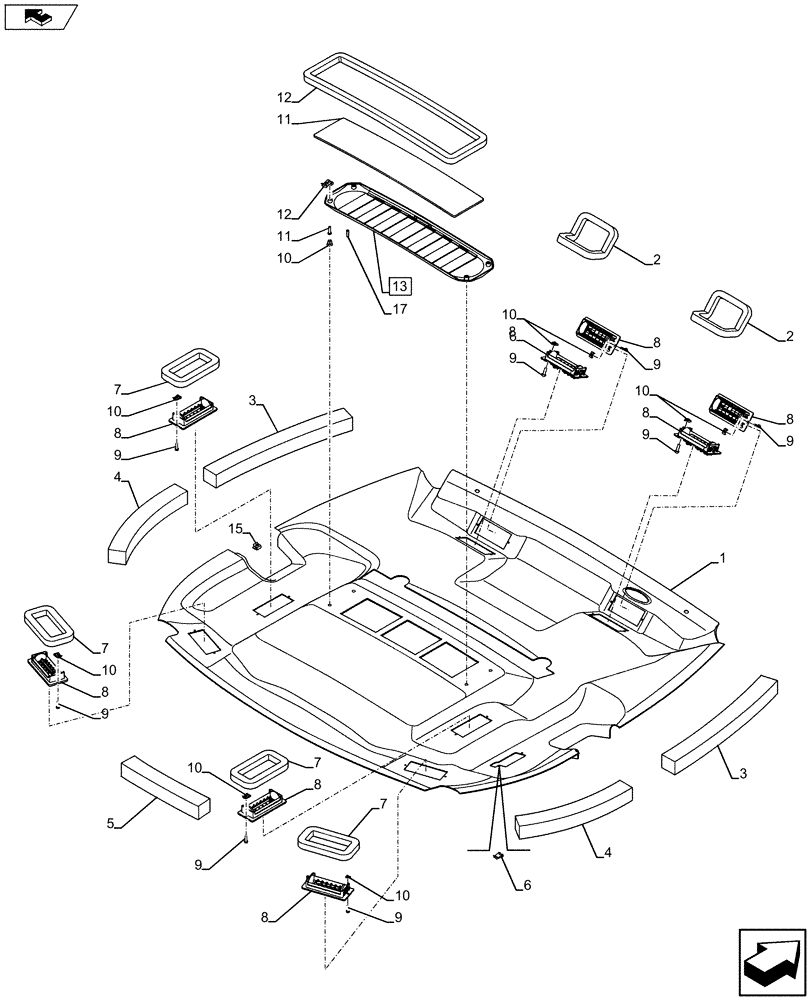

Запчасти Case 580SN (90.160.05) - VAR - X05021X - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224381

HEADLINER

1шт.

2

368813A2

SEAL,168mm L

2шт.

3

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

2шт.

4

379161A1

SEAL,379mm L

2шт.

5

379209A1

SEAL,303mm L

1шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

7

84499076

GASKET,174mm L x 97mm L

4шт.

8

363883A1

LOUVER

8шт.

9

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

10

125749A1

SPRING NUT

16шт.

11

377594A5

FILTER

1шт.

12

381972A1

SEAL,592.5mm L

1шт.

13

369450A1

GRILLE

Assy, Incl 17

1шт.

14

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

15

177269A1

SPRING NUT,M4.2

4шт.

16

409723A1

PLUG

4шт.

17

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.
