(90.160.04[02]) - VAR - X05021X - CAB - INTERIOR

Запчасти Case 580SN (90.160.04[02]) - VAR - X05021X - CAB - INTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

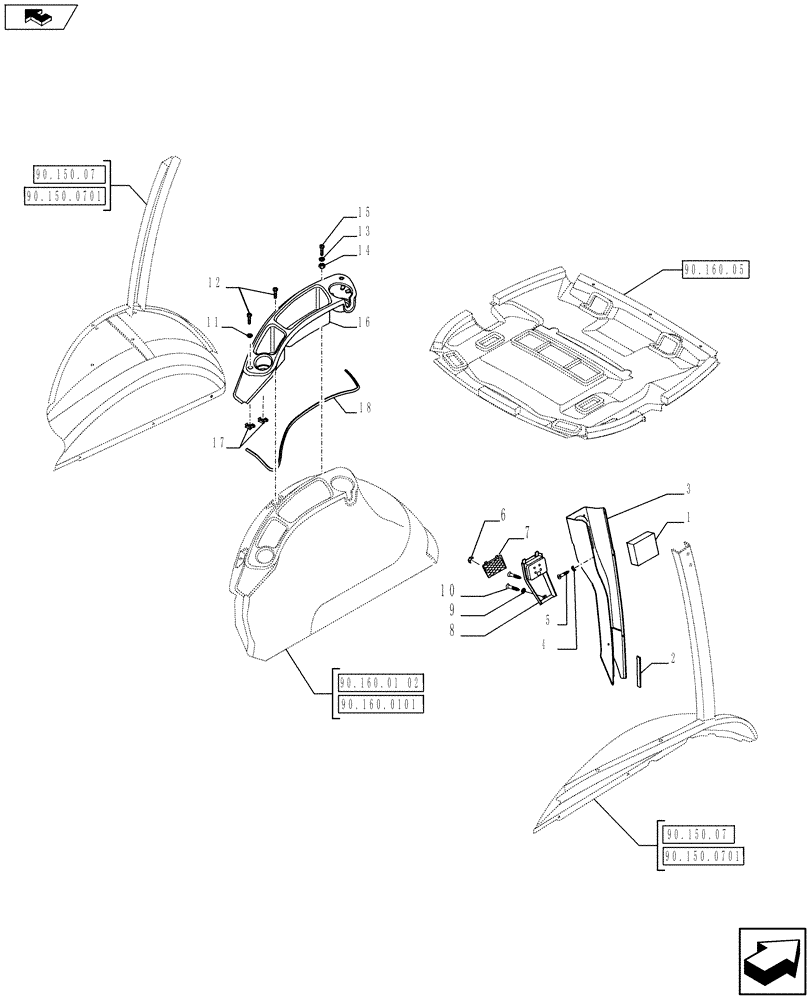

Схема запчастей Case 580SN - (90.160.04[02]) - VAR - X05021X - CAB - INTERIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
13
5
8
3
4
7
1
9
90.150.0701
90.160.0101
90.150.07
6
16
10
90.160.05
17
11
15
90.150.0701
90.160.01 02
2
90.150.07
home
18
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

412285A1

STRIP

1шт.

2

414939A1

SEAL,200mm L

2шт.

3

84224374

COVER ASSY

1шт.

4

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

5

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

6

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

1шт.

7

84224377

NET

1шт.

8

84224376

BEZEL

1шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

10

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

1шт.

11

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

13

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

14

231-14109

LOCK NUT,#10-24, GB

2шт.

15

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

16

86992247

TRAY

1шт.

17

833-40406

NUT,M6, U

2шт.

18

400077A1

PROTECTION STRIP,1300mm

1шт.
