(90.160.01[02]) - VAR - 442083 - CAB - DELUXE PACKAGE

Запчасти Case 580SN (90.160.01[02]) - VAR - 442083 - CAB - DELUXE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

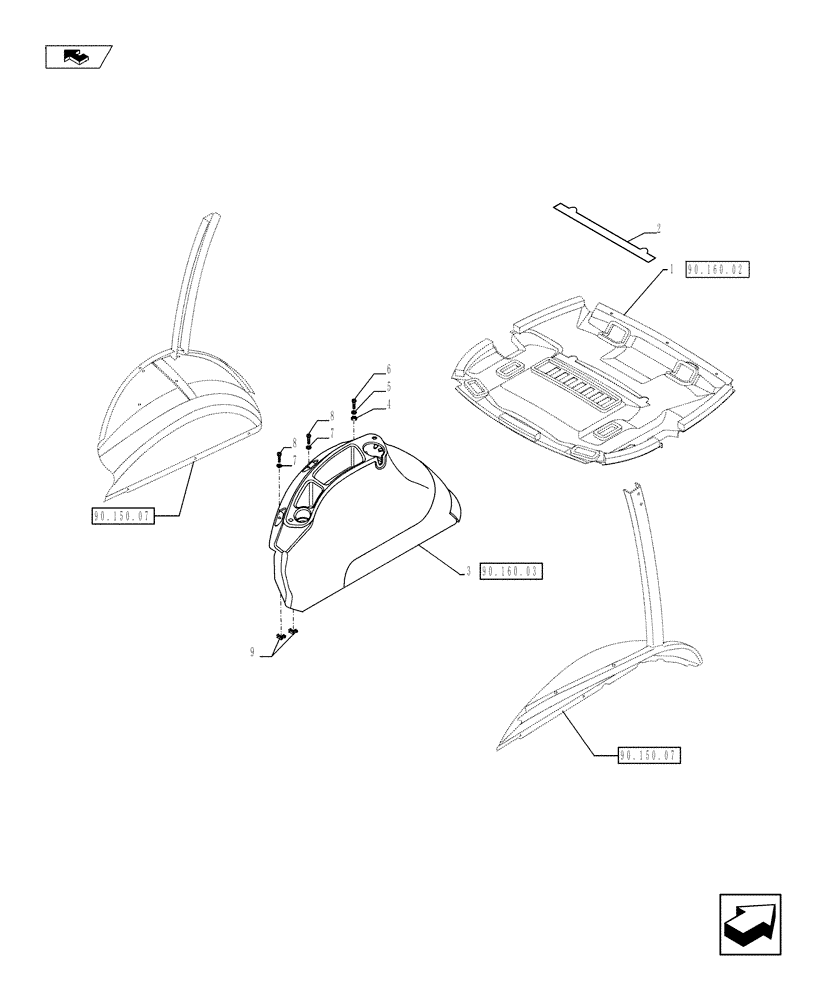

Схема запчастей Case 580SN - (90.160.01[02]) - VAR - 442083 - CAB - DELUXE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
2
home
5
3
7
8
1
7
90.150.07
8
90.150.07
90.160.02
6
90.160.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84224380

HEADLINER

Assy, See 90.160.02

1шт.

2

382770A2

FOAM INSULATION,3mm Thk

1шт.

3

86992245

COVER

Assy, See 90.160.03

1шт.

4

231-14109

LOCK NUT,#10-24, GB

2шт.

5

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

6

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

7

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

9

833-40406

NUT,M6, U

2шт.

Выбрано товаров: 9
