(90.151.02) - VAR - X05105X - SEAT, BELT

Запчасти Case 580SN (90.151.02) - VAR - X05105X - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

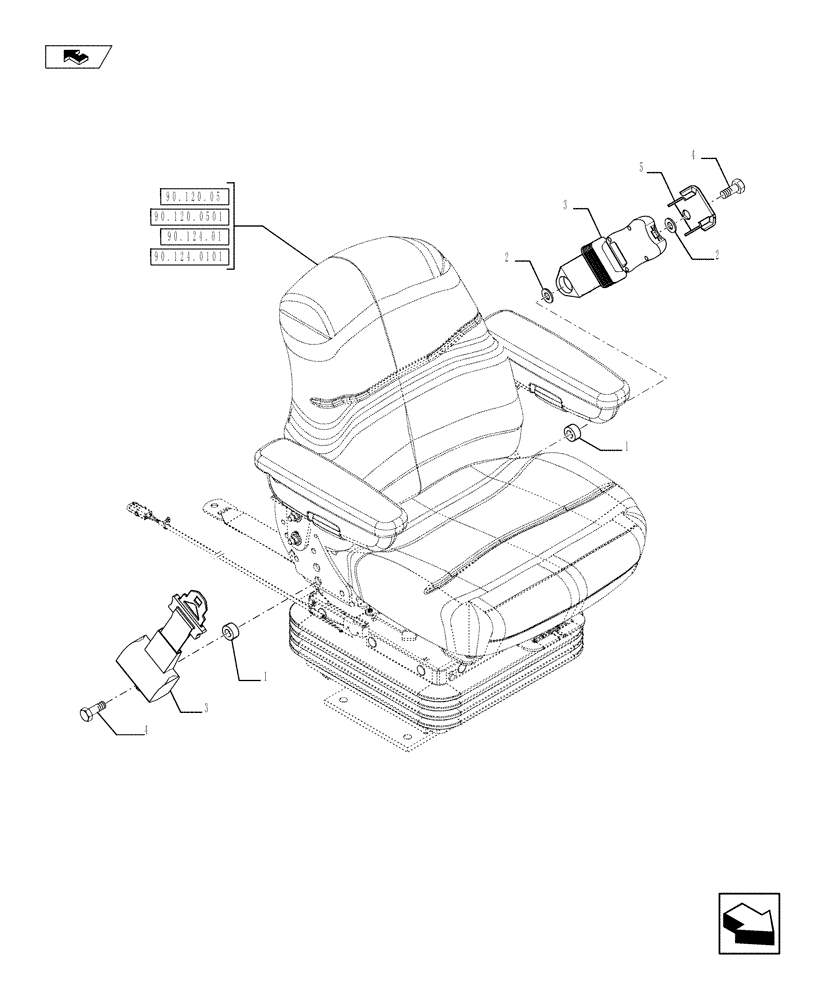

Схема запчастей Case 580SN - (90.151.02) - VAR - X05105X - SEAT, BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
5
home
90.124.0101
3
90.120.0501
1
3
90.120.05
1
2
90.124.01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84425027

SEAT BELT,50.8mm W x 1219.2mm L

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

3

87310149

BRACKET

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.
