(10.402.01) - WATER PUMP (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.402.01) - WATER PUMP (580SN, 580SN WT, 590SN) (10) - ENGINE

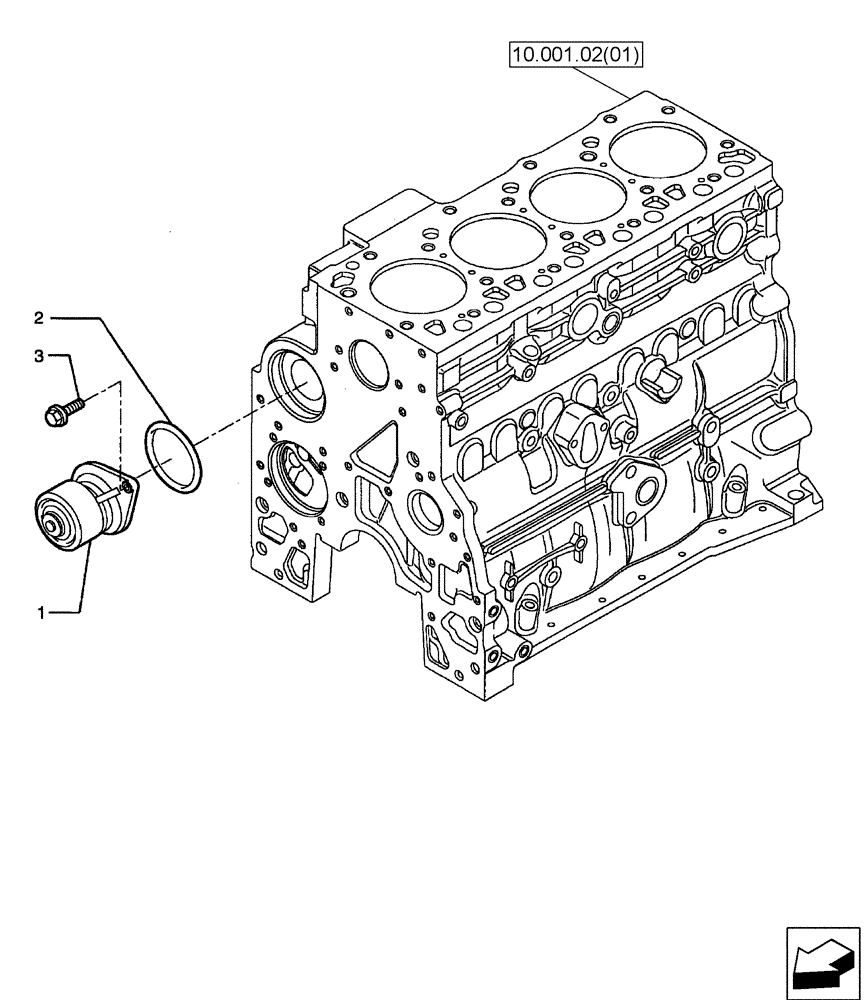

Схема запчастей Case 580SN - (10.402.01) - WATER PUMP (580SN, 580SN WT, 590SN) (10) - ENGINE
1
3
2
10.001.02(01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852114

WATER PUMP

1шт.

1

2852114R

REMAN-WATER PUMP

1шт.

1

2852114C

CORE-WATER PUMP

Return Number

1шт.

2

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

3

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.
