(10.304.01) - OIL PUMP - ENGINE (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.304.01) - OIL PUMP - ENGINE (580SN, 580SN WT, 590SN) (10) - ENGINE

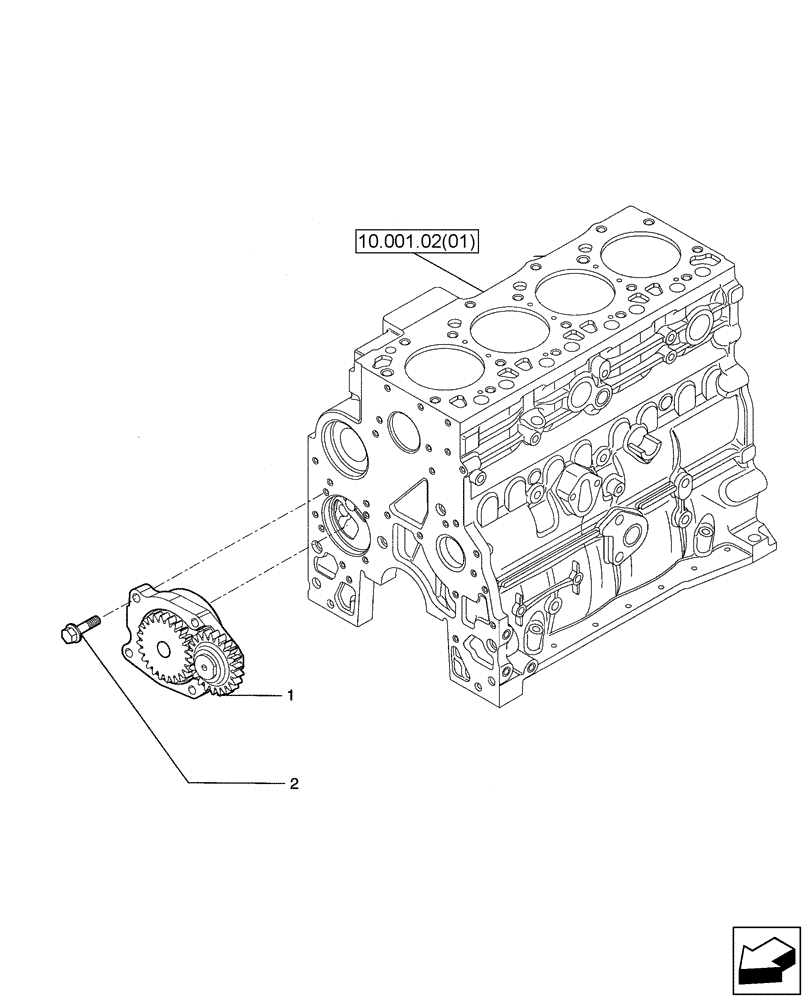

Схема запчастей Case 580SN - (10.304.01) - OIL PUMP - ENGINE (580SN, 580SN WT, 590SN) (10) - ENGINE
10.001.02(01)
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897480

ENGINE OIL PUMP

1шт.

1

4897480R

REMAN-ENG OIL PUMP

580N, 580SN, 580SN WT, 590SN

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

1

2853414

ENGINE OIL PUMP

Alternate, Serial Range: Part-4897480

1шт.

1

4897480R

REMAN-ENG OIL PUMP

580N, 580SN, 580SN WT, 590SN, REMAN FOR NEW P/N 2853414

1шт.

1

4897480C

CORE-ENGINE OIL PUMP

RETURN NUMBER

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.

Выбрано товаров: 7
