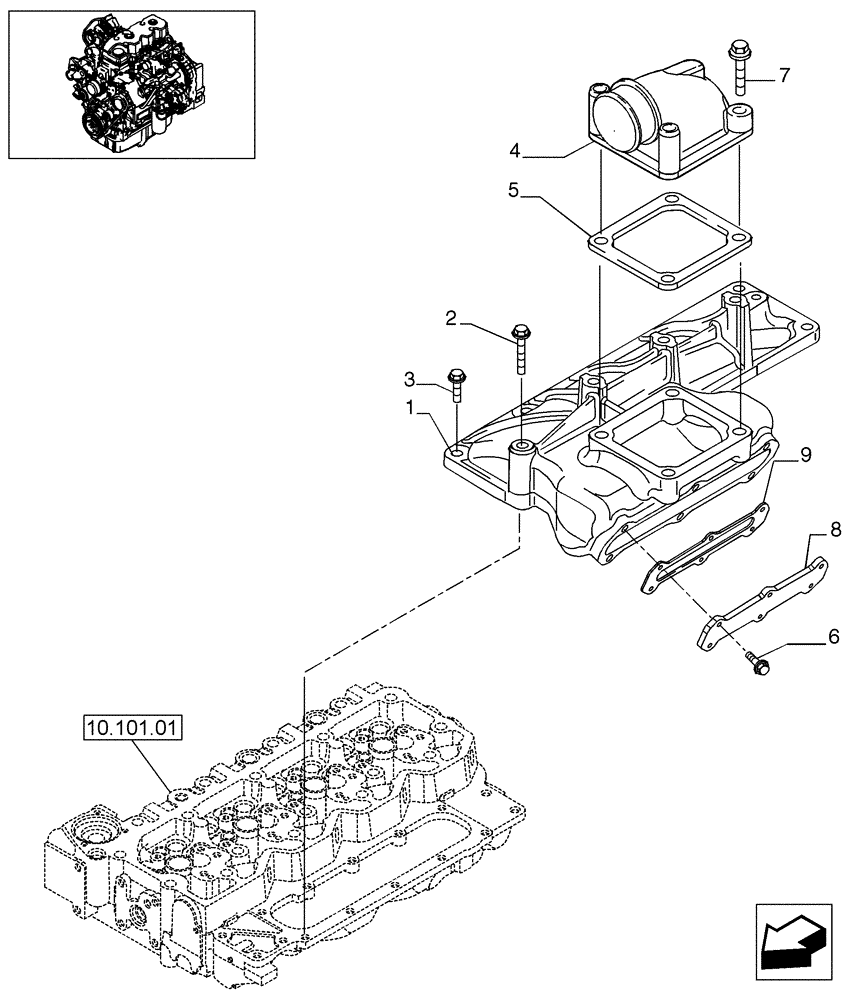

Запчасти Case 580SN (10.254.06) - MANIFOLD - INTAKE (580SN, 580SN WT, 590SN) (10) - ENGINE

1

2855805

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

1шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

6шт.

4

2855809

MANIFOLD

1шт.

5

4899921

GASKET,1.2mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

M6 x 20

6шт.

7

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8 x 40

2шт.

7

2852267

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

2шт.

8

2854700

COVER

1шт.

9

2854701

GASKET,0.8mm Thk

1шт.
