(10.110.03) - DYNAMIC BALANCER, HOUSING (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.110.03) - DYNAMIC BALANCER, HOUSING (580SN, 580SN WT, 590SN) (10) - ENGINE

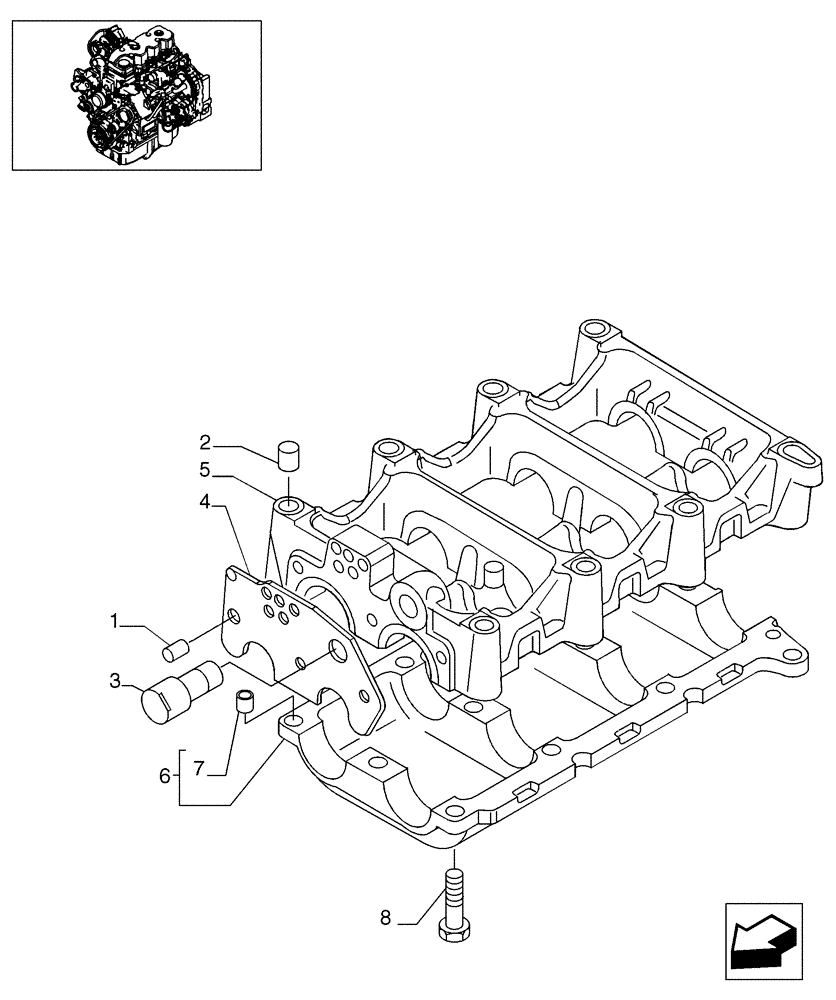

Схема запчастей Case 580SN - (10.110.03) - DYNAMIC BALANCER, HOUSING (580SN, 580SN WT, 590SN) (10) - ENGINE
8
2
6
7
5
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2855744

HOUSING

Dynamic Balancer; Incl. 1 - 8

1шт.

1

2831305

DOWEL,M8 x 17 L

1шт.

2

4899027

DOWEL,M14.05 x 14 L

2шт.

3

2830948

IDLE SHAFT

1шт.

4

2855746

THRUST PLATE

1шт.

5

2831303

HOUSING

1шт.

6

2831302

HOUSING

Incl. 7

1шт.

7

4891209

DOWEL,M13 x 8 L

6шт.

8

4895323

FLANGE BOLT,Hex, M8 x 1.25 x 40mm

12шт.
