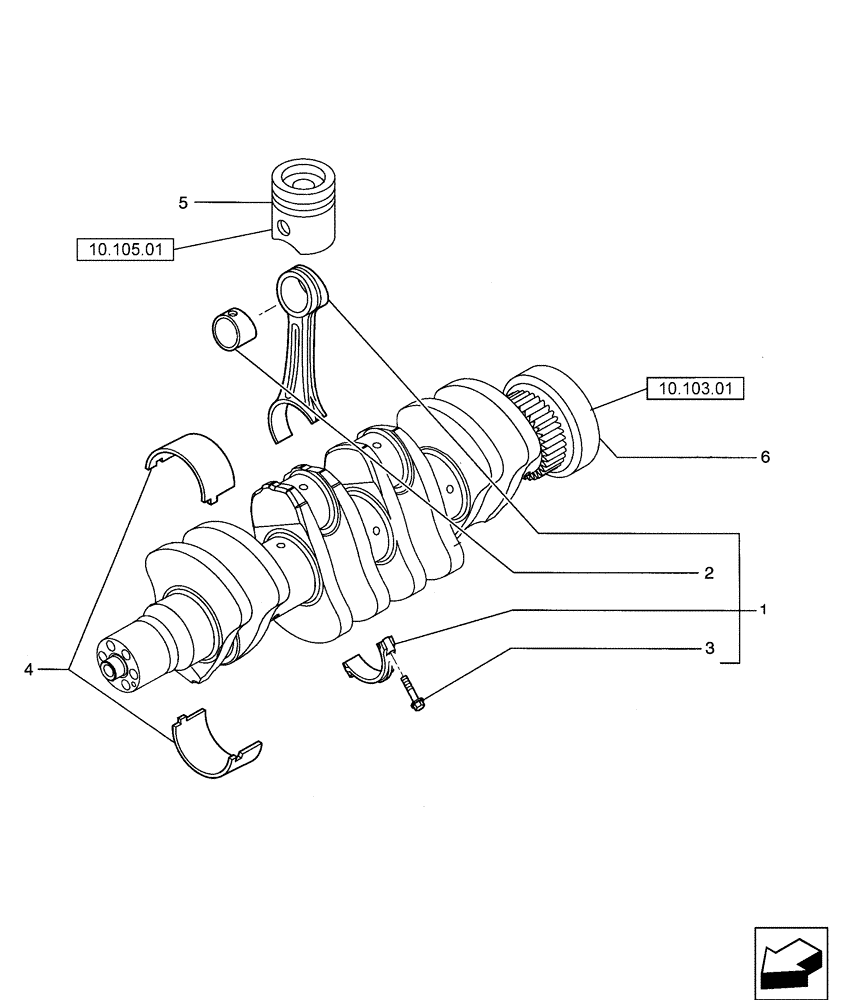

Запчасти Case 580SN (10.105.02) - PISTONS - CONNECTING ROD (580SN, 580SN WT, 590SN) (10) - ENGINE

1

84131473

SHORT ENGINE

1шт.

1

84131473R

REMAN-SHORT ENGINE

580SN, 590SN, 580SN WT ALL LOADER BACKHOE TIER 3

1шт.

1

84131473C

CORE-ENGINE

Return Number

1шт.

1

84131473ER

REMAN-SHORT ENGINE

580N , 580SN WT , 590SN , 580SN ALL (TIER 3)

1шт.

1

84131473EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

2831298

CONNECTING ROD

Incl. Refs 2, 3

4шт.

1

2831298R

REMAN-CONNECTING ROD

580N, 580SN, 580SN WT, 590SN, All Tier 3

4шт.

1

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

Standard

4шт.

4

8094960

BEARING SET,(-0.250)

.025 mm oversize

4шт.

4

8094961

BEARING SET,(-0.500)

.050 mm oversize

4шт.

5

REF

INSTRUCTION

PISTON

1шт.

6

REF

INSTRUCTION

CRANKSHAFT

1шт.
