Запчасти Case 580SN (10.105.01) - PISTON - ENGINE (580SN, 580SN WT, 590SN) (10) - ENGINE

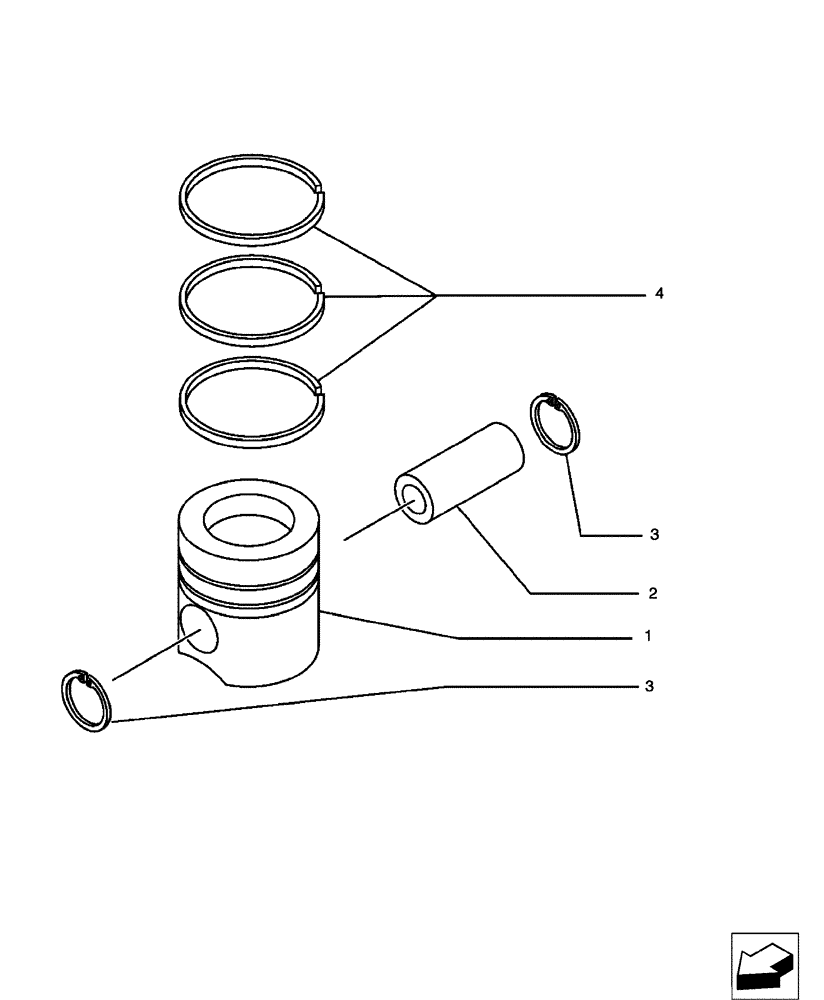

Схема запчастей Case 580SN - (10.105.01) - PISTON - ENGINE (580SN, 580SN WT, 590SN) (10) - ENGINE
3
4
4
4
1
3
2

Артикул

Название

Примечание

Количество

84131473

SHORT ENGINE

1шт.

84131473R

REMAN-SHORT ENGINE

580SN, 590SN, 580SN WT ALL LOADER BACKHOE TIER 3

1шт.

84131473C

CORE-ENGINE

Return Number

1шт.

84131473ER

REMAN-SHORT ENGINE

580SN, 580SN WT, 590SN, All Tier 3

1шт.

84131473EPAC

CORE-EPA ENGINE

Return Number

1шт.

87317256

PISTON & RINGS KIT

Standard; Incl. Piston 2855519, Top Compression Ring 2854603, Second Compression Ring 2830158, Oil Control Ring 2852037, Piston Pin 4892712, And Retainer 4892713

1шт.

87317257

PISTON & RINGS KIT

0.4 mm Oversize, Incl. Piston 2856713, Top Compression Ring 2856, Second Compression Ring 2830159, Oil Control Ring 2853875, Piston Pin 4892712, And Retainer 4892713

1шт.

1

2855519

PISTON

PISTON

4шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

4шт.

3

4892713

SNAP RING,Int, M26.4

8шт.

87582179

PISTON RINGS KIT

STD; Incl. Top Compression Ring 2854603, Second Compression Ring 2830158, Oil Control Ring 2852037

1шт.

87582180

PISTON RINGS KIT

0.4 mm Oversize; Incl. Top Cmpression Ring 2856713, Second Compression Ring 2830159, Oil Control Ring 2853875

1шт.

4

2854603

PISTON RING

Sealing

1шт.

4

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

1шт.

4

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

1шт.

Выбрано товаров: 15
