Запчасти Case 580SN (10.103.01) - CRANKSHAFT (580SN, 580SN WT, 590SN) (10) - ENGINE

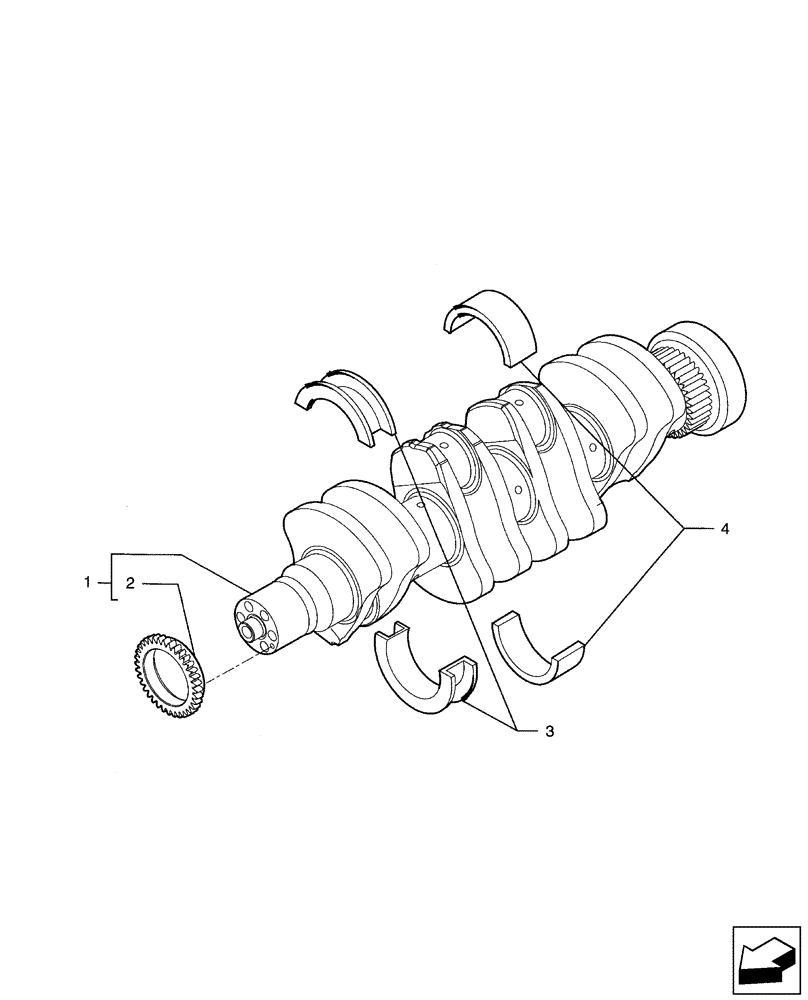

Схема запчастей Case 580SN - (10.103.01) - CRANKSHAFT (580SN, 580SN WT, 590SN) (10) - ENGINE
4
4
3
2
3
3
1
4

Артикул

Название

Примечание

Количество

1

84131473

SHORT ENGINE

1шт.

1

84131473R

REMAN-SHORT ENGINE

580SN, 590SN, 580SN WT ALL LOADER BACKHOE TIER 3

1шт.

1

84131473C

CORE-ENGINE

Return Number

1шт.

1

84131473ER

REMAN-SHORT ENGINE

580SN, 580SN WT, 590SN, All Tier 3

1шт.

1

84131473EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

2853822

CRANKSHAFT

Incl. Ref 2, 5

1шт.

1

2853822R

REMAN-CRANKSHAFT

Reman For New PN 2853822

1шт.

1

2853822C

CORE-CRANKSHAFT

Return Number

1шт.

2

4893386

GEAR,36 T

1шт.

3

2995784

SET OF THRUST WASHER

1шт.

3

2995785

SET OF MAIN BRGS-.25

-0.25 Undersize

1шт.

3

2995786

SET OF THRUST WASHER

-0.50 Undersize

1шт.

4

2995787

SET OF STD MAIN BRGS

4шт.

4

2995788

SET OF MAIN BRGS-.25

Undersize

4шт.

4

2992149

SET OF MAIN BRGS -

-0.50 Undersize

4шт.

5

4899046

DOWEL,M6 x 9 L

Not Illustrated

1шт.

Выбрано товаров: 16
