(10.102.04) - CYLINDER BLOCK - COVERS (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.102.04) - CYLINDER BLOCK - COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE

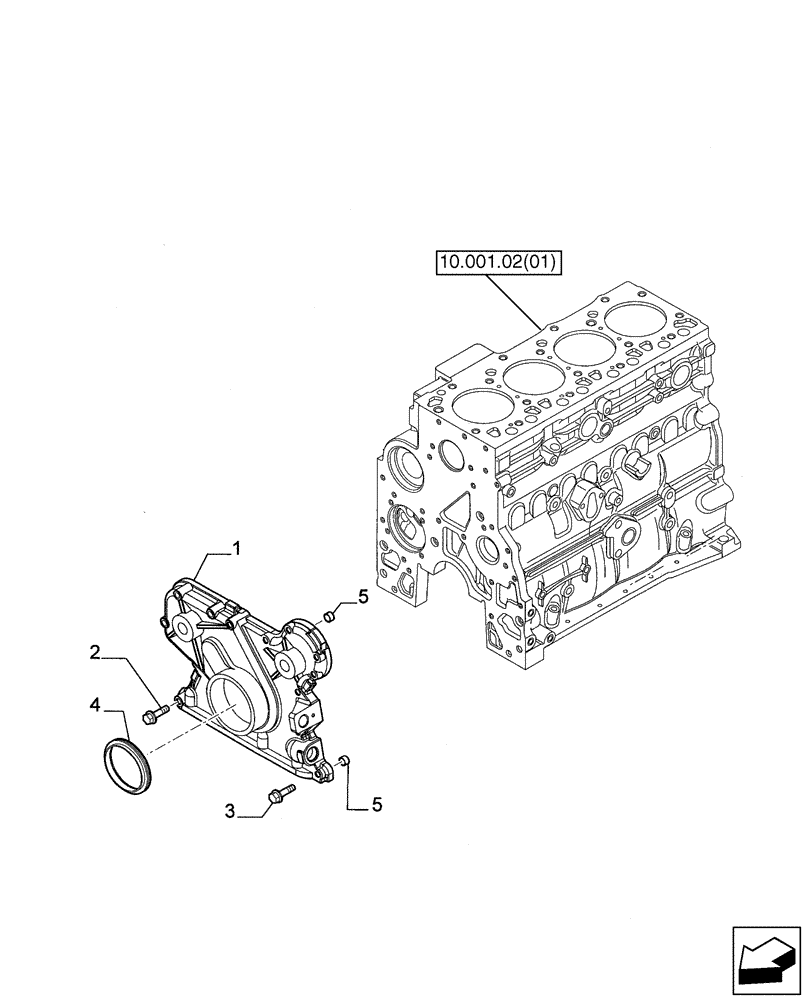

Схема запчастей Case 580SN - (10.102.04) - CYLINDER BLOCK - COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE
5
5
1
2
4
10.001.02(01)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897024

COVER

Front Gear

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

5шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.
