(10.102.03[01]) - CRANKCASE COVERS (580SN, 580SN WT, 590SN)

Запчасти Case 580SN (10.102.03[01]) - CRANKCASE COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE

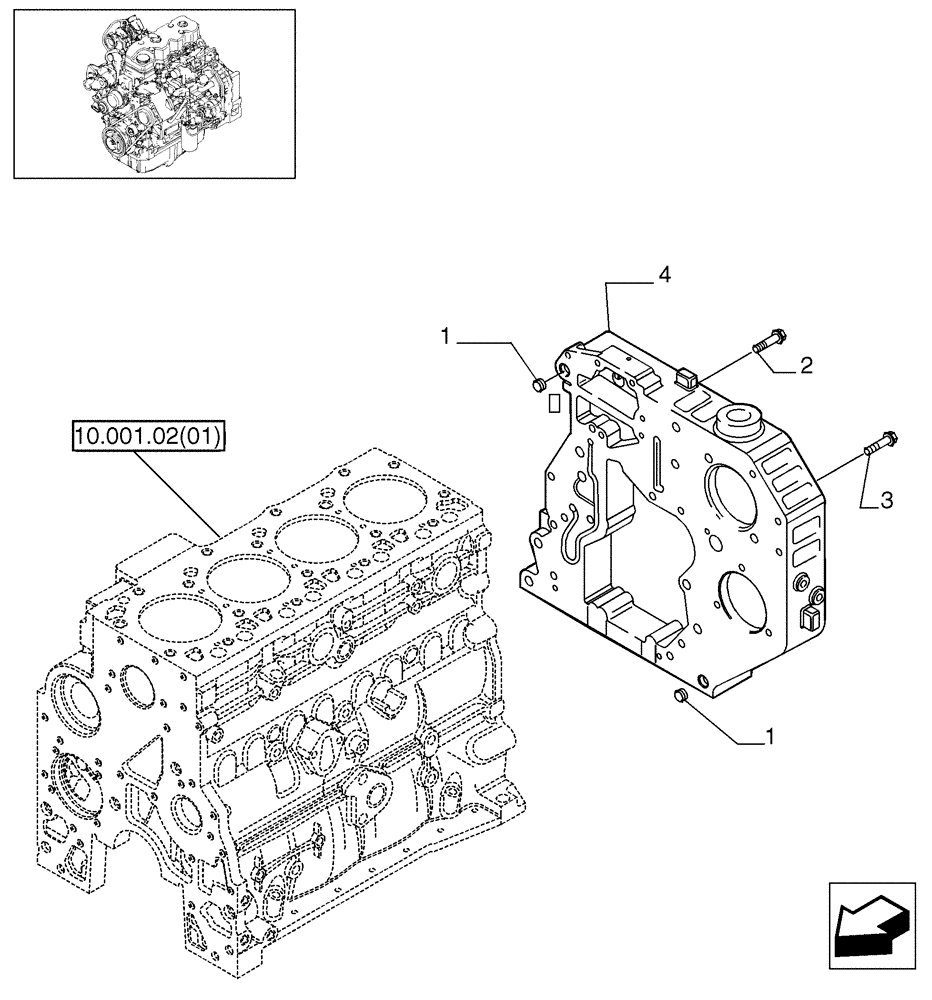

Схема запчастей Case 580SN - (10.102.03[01]) - CRANKCASE COVERS (580SN, 580SN WT, 590SN) (10) - ENGINE
3
3
1
4
10.001.02(01)
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

3

4896939

SCREW,M10 x 1.5 x 50mm

M10 x 1.5 x 50

3шт.

4

2855801

HOUSING

1шт.
