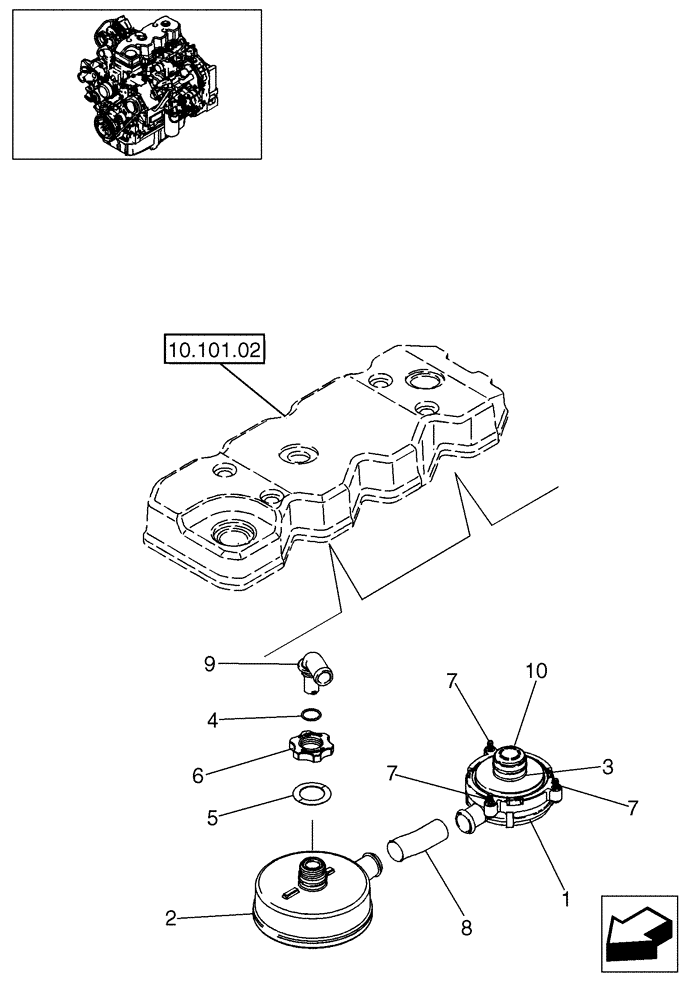

/ / / / / / / / (10.101.04) - BREATHER - ENGINE (580SN, 580SN WT, 590SN)
Запчасти Case 580SN (10.101.04) - BREATHER - ENGINE (580SN, 580SN WT, 590SN) (10) - ENGINE
1
2
10.101.02
8
6
7
9
5
3
7
4
7
10
2853826
BREATHER
Incl. 1 - 10
1шт.
1
84196302
BREATHER,M30
Assy, Kit Regulator
1шт.
2
87304662
BREATHER
Kit, Filter
1шт.
3
87304661
O-RING,34.5mm ID
1шт.
4
87304653
O-RING
1шт.
5
87304654
WASHER
1шт.
6
87304655
NUT
1шт.
7
87304660
SCREW,M50 x 28mm
3шт.
8
87304656
HOSE
Filter to Regulator
1шт.
9
87307807
ELBOW,90 Deg, 17.8mm - 22mm ID
1шт.
10
87304652
FILTER
Crankcase Vent
1шт.
