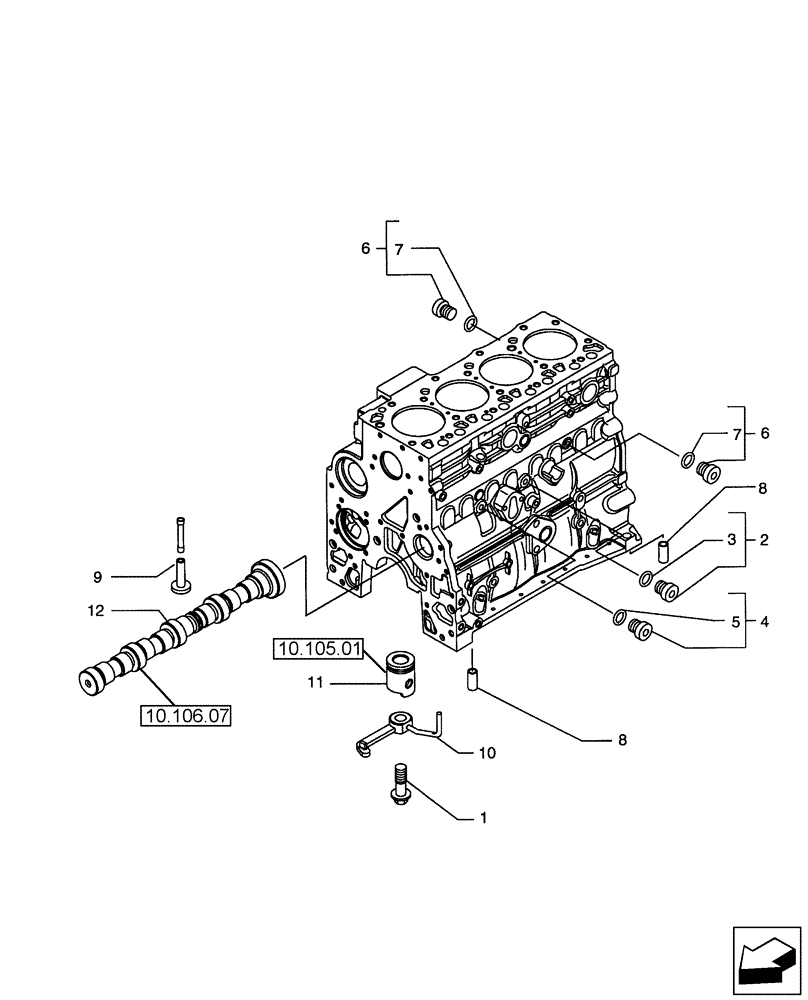

Запчасти Case 580SN (10.001.02[02]) - CYLINDER BLOCK (580SN, 580SN WT, 590SN) (10) - ENGINE

1

84131473

SHORT ENGINE

1шт.

1

84131473R

REMAN-SHORT ENGINE

580SN, 580SN WT, 590SN ALL LOADER BACKHOE - TIER 3

1шт.

1

84131473C

CORE-ENGINE

Return Number

1шт.

1

4894218

SCREW,Special, M8 x 20

4шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref 3

1шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref 5

1шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref 7

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

4891226

TAPPET

8шт.

10

2852202

NOZZLE, PISTON COOLI

Incl. Ref 1

4шт.

11

NSS

NOT SOLD SEPARAT

Piston, See Fig. 10.105.01

1шт.

12

NSS

NOT SOLD SEPARAT

Camshaft, See Fig. 10.106.07

1шт.

13

87478874

GASKET KIT

(Not Shown)

1шт.
