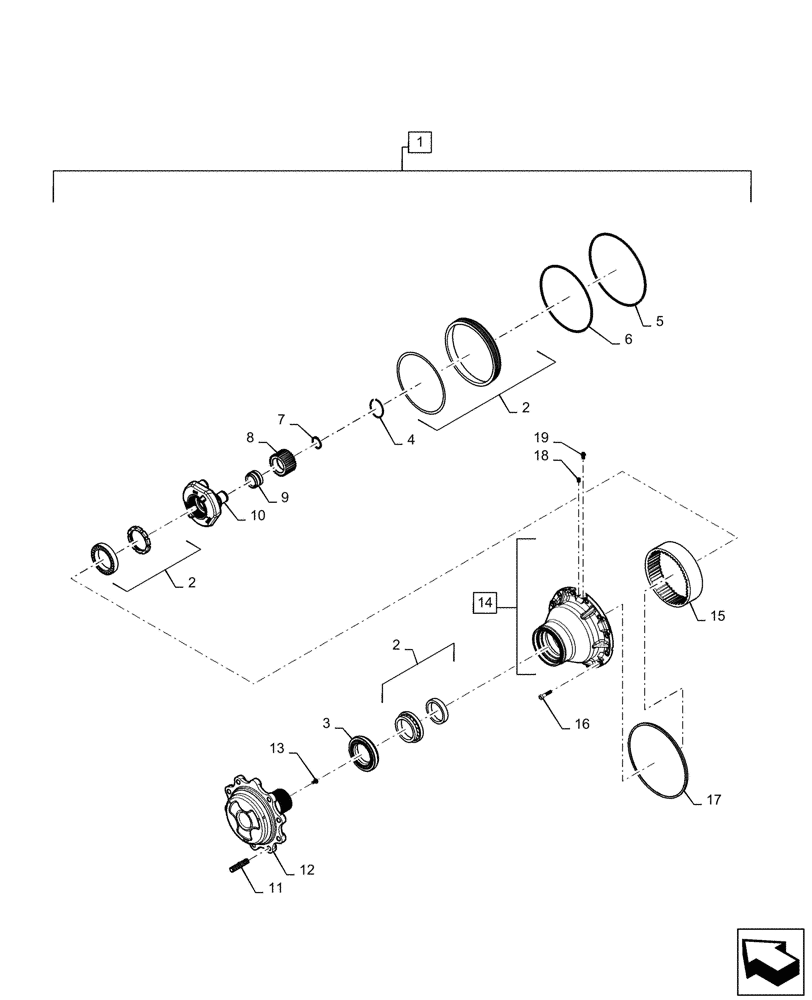

Запчасти Case 580SN (27.120.02[01]) - AXLE, REAR DRIVE - PLANETARY (580N, 580SN) (27) - REAR AXLE SYSTEM

87395372

REAR AXLE

Assembly, 580N, 580SN Models

1шт.

87395372R

REMAN-REAR AXLE

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

47566688

HUB

Axle, Wheel End Sub Assembly, Incl 2 - 19

1шт.

2

47579403

KIT

Kit, MR1 Ring Nut

1шт.

3

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

1шт.

4

87708453

SNAP RING

Wheel Hub

1шт.

5

371144A1

O-RING

Piston, Exterior

1шт.

6

87708438

O-RING

1шт.

7

800-1150

SNAP RING,M50, Ext

Exterior

3шт.

8

87708443

GEAR

Rear Axle

3шт.

9

87708444

ROLLER BEARING

3шт.

10

87708452

PLANET CARRIER

1шт.

11

D142986

STUD,88mm L

Bolt

10шт.

12

87708445

FLANGE

Rear Axle

1шт.

13

K395093

HEADED PIN,12mm OD x 15mm L

Lock

1шт.

14

87708466

GEAR SET

Rear Axle Wheel Hub, Incl 15

1шт.

15

87708467

RING GEAR

Rear Axle, Incl in 14

1шт.

16

403955A1

BOLT

M14 x 45

12шт.

17

87711038

RING

Wheel Hub

1шт.

18

E135809

PLUG

1шт.

19

E135810

VENTING SCREW

Bleeder

1шт.
