(27.110.02[02]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580N, 580SN)

Запчасти Case 580SN (27.110.02[02]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580N, 580SN) (27) - REAR AXLE SYSTEM

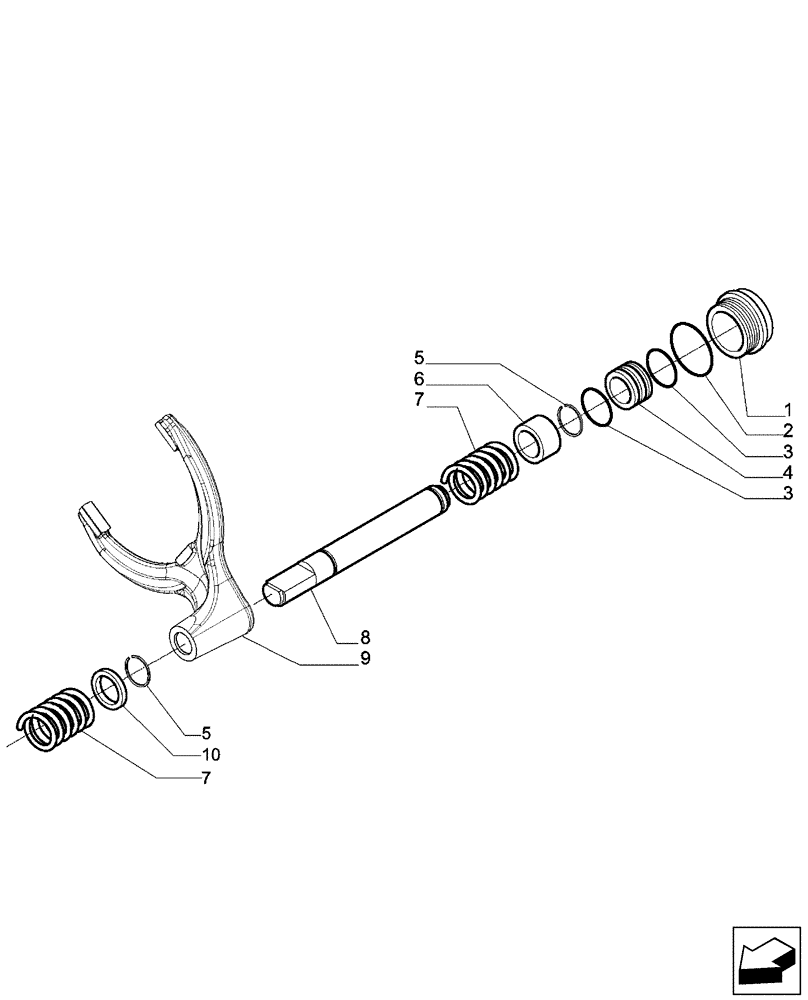

Схема запчастей Case 580SN - (27.110.02[02]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580N, 580SN) (27) - REAR AXLE SYSTEM
4
9
8
7
5
6
10
2
1
5
3
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395372

REAR AXLE

580N, 580SN Models, Inc 1 - 10

1шт.

1

87395372R

REMAN-REAR AXLE

580N - LOADER BACKHOE (TIER 3), 580SN - LOADER BACKHOE - TIER 3

1шт.

1

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708413

CYLINDER

Differential Lock

1шт.

2

87708415

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

87708417

CIRCLIP

Pin

2шт.

6

87708420

BUSHING

1шт.

7

175966A1

SPRING

2шт.

8

87708422

PISTON

Control, Differential Locking

1шт.

9

87708424

FORK

1шт.

10

87708427

SPACER

1шт.
