(27.100.09) - AXLE, REAR DRIVE - HOUSING (580N, 580SN)

Запчасти Case 580SN (27.100.09) - AXLE, REAR DRIVE - HOUSING (580N, 580SN) (27) - REAR AXLE SYSTEM

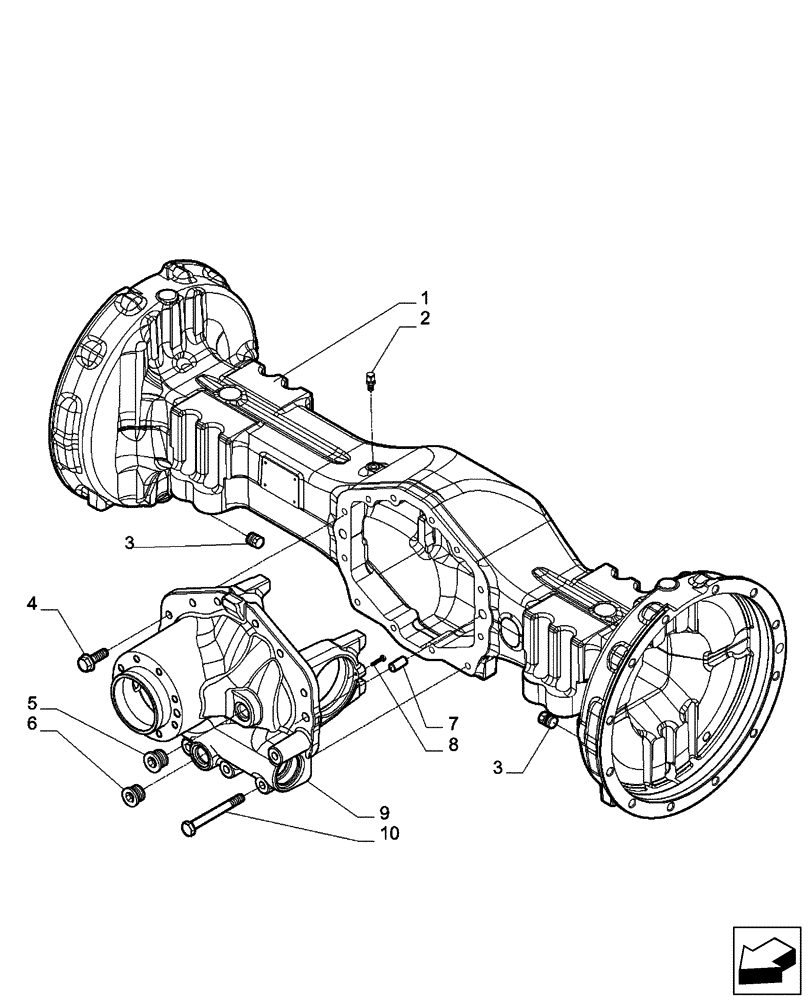

Схема запчастей Case 580SN - (27.100.09) - AXLE, REAR DRIVE - HOUSING (580N, 580SN) (27) - REAR AXLE SYSTEM
9
3
8
1
6
5
7
10
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395372

REAR AXLE

Inc 1 - 10

1шт.

87395372R

REMAN-REAR AXLE

580N - LOADER BACKHOE (TIER 3), 580SN - LOADER BACKHOE - TIER 3

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

1

87708390

AXLE HOUSING

1шт.

2

1966149C1

BREATHER

M10 x 1

1шт.

3

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

4

S301064

BOLT,M12

M12 x 1.75

8шт.

5

434746A1

PLUG,M24 x 1.5

M24 x 1.5

1шт.

6

100557A1

PLUG, DRAIN,M30 x 2

M30 x 2

1шт.

7

1966138C1

DOWEL

2шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

87708391

CARRIER,Bevel Gear

Differential

1шт.

10

87708392

BOLT,Hex, M12 x 100mm

M12 x 100

4шт.
