(27.100.08[01]) - AXLE, REAR DRIVE - MOUNTING (580N, 580SN)

Запчасти Case 580SN (27.100.08[01]) - AXLE, REAR DRIVE - MOUNTING (580N, 580SN) (27) - REAR AXLE SYSTEM

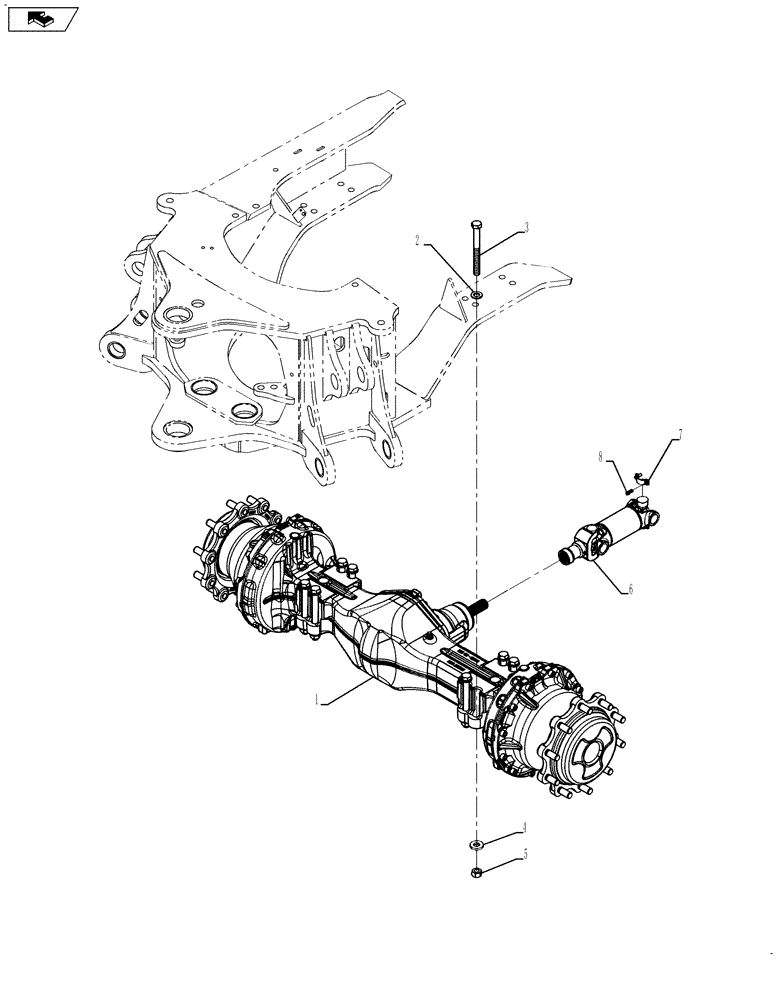

Схема запчастей Case 580SN - (27.100.08[01]) - AXLE, REAR DRIVE - MOUNTING (580N, 580SN) (27) - REAR AXLE SYSTEM
8
5
1
3
6
2
4
home
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395372

REAR AXLE

1шт.

87395372R

REMAN-REAR AXLE

580N - LOADER BACKHOE (TIER 3), 580SN - LOADER BACKHOE - TIER 3

1шт.

87395372C

CORE-REAR AXLE

Return Number

1шт.

2

NS

NOT SERVICED

8шт.

3

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

87613924

DRIVE SHAFT

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

Driveshaft Spider Bearing

2шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
