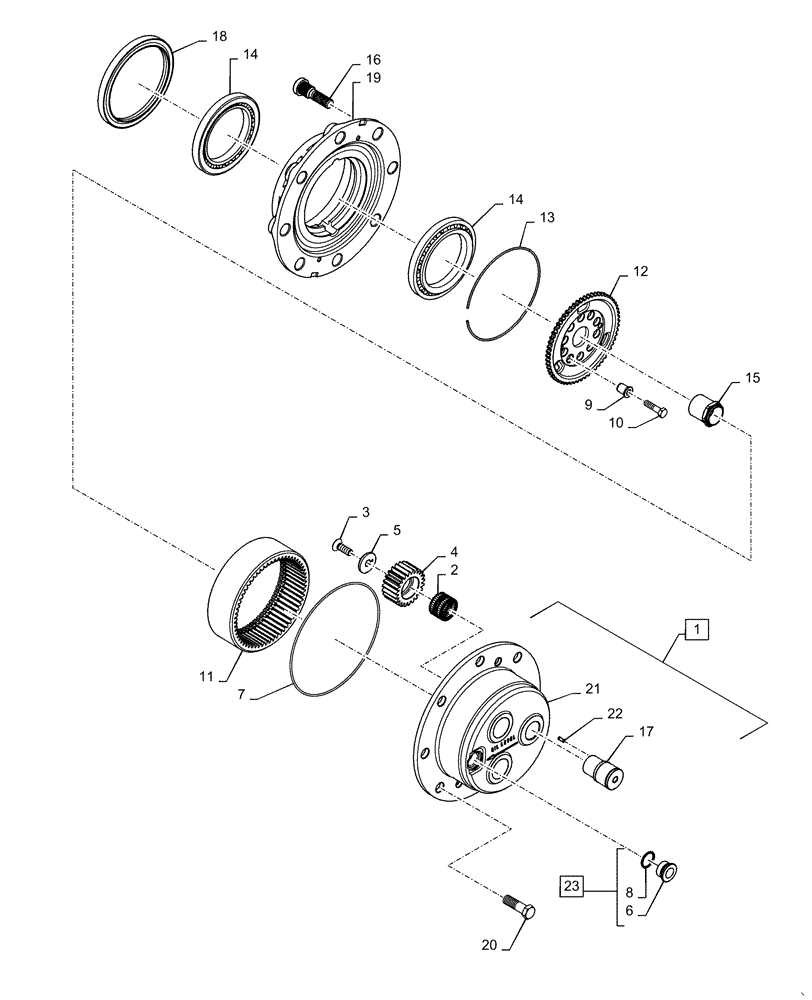

Запчасти Case 580SN (25.310.01[01]) - AXLE, FRONT DRIVE - PLANETARY (580N, 580SN) (25) - FRONT AXLE SYSTEM

1

84249602

PLANET CARRIER

Includes Ref. 17, 21, 22

1шт.

2

84268600

NEEDLE ROLLER

186шт.

3

84273745

SCREW

3шт.

4

84183888

PLANETARY GEAR,23T

3шт.

5

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

3шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 23

1шт.

7

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

8

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

84270060

SLEEVE,10.55mm ID x 16.069mm OD x 23mm L

10шт.

10

84404452

BOLT,Hex, M10 x 40, Full, Cl. 8.8

10шт.

11

87748927

RING GEAR,60T

1шт.

12

84270062

RING GEAR,60T

1шт.

13

5165162

SNAP RING,M50, Int

1шт.

14

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

15

84316953

NUT,M45 x 1.5, 61mm L

1шт.

16

84264323

STUD,M18 x 1.5 x 71.2mm

8шт.

17

84299880

PIN,40.3mm OD x 41.3mm L

3шт.

18

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

19

84297562

HUB

1шт.

20

13028524

SCREW,M8 x 20mm

4шт.

21

NSS

NOT SOLD SEPARAT

Planetary Gear, Incl in 1

1шт.

22

84380206

NEEDLE ROLLER,4mm OD x 12mm L

3шт.

23

84272055

PLUG,M30 x 2

Includes Ref. 6, 8

1шт.
