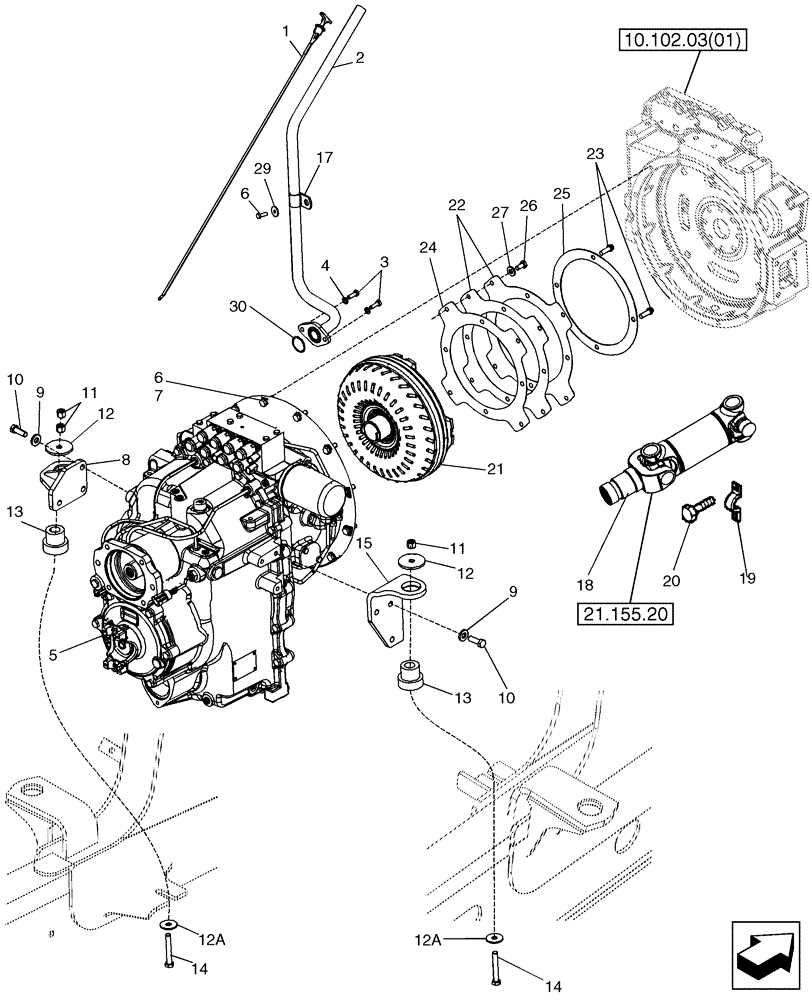

Запчасти Case 580SN (21.113.01[03]) - TRANSMISSION - MOUNTING (MODELS WITH POWERSHIFT) (21) - TRANSMISSION

1

87601345

DIPSTICK,824mm L

1шт.

2

87655222

TUBE

Dipstick

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

87567534

TRANSMISSION

Power Shift, 4WD

1шт.

5

87567534R

REMAN-TRANSMISSION

Power Shift, 4WD, Remanufactured

1шт.

5

87567534C

CORE-TRANSMISSION

Power Shift, 4WD, Core

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

8

87735094

SUPPORT

Left-Hand Bracket

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

10

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

12

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

Special

2шт.

12a

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

13

87416967

SUPPORT

INSULATOR

2шт.

14

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

15

87735095

SUPPORT

Right-Hand Bracket

1шт.

17

D35908

CLAMP,1" Clamping pipe

1шт.

18

87613924

DRIVE SHAFT

Transmission to Rear Axle

1шт.

18

87693489

DRIVE SHAFT

Transmission to Rear Axle

1шт.

19

87538515

KIT

2шт.

20

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.

21

87702192

TORQUE CONVERTER

1шт.

21

87702192R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

21

87702192C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

22

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

2шт.

23

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

23

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

24

87406934

PLATE

Flex Plate With Caged Nut

1шт.

24

47442982

KIT

Flex Plate With Caged Nut

1шт.

25

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

1шт.

26

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

27

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

12644301

WASHER,M10 x 35 x 3

1шт.

30

272218

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1шт.
