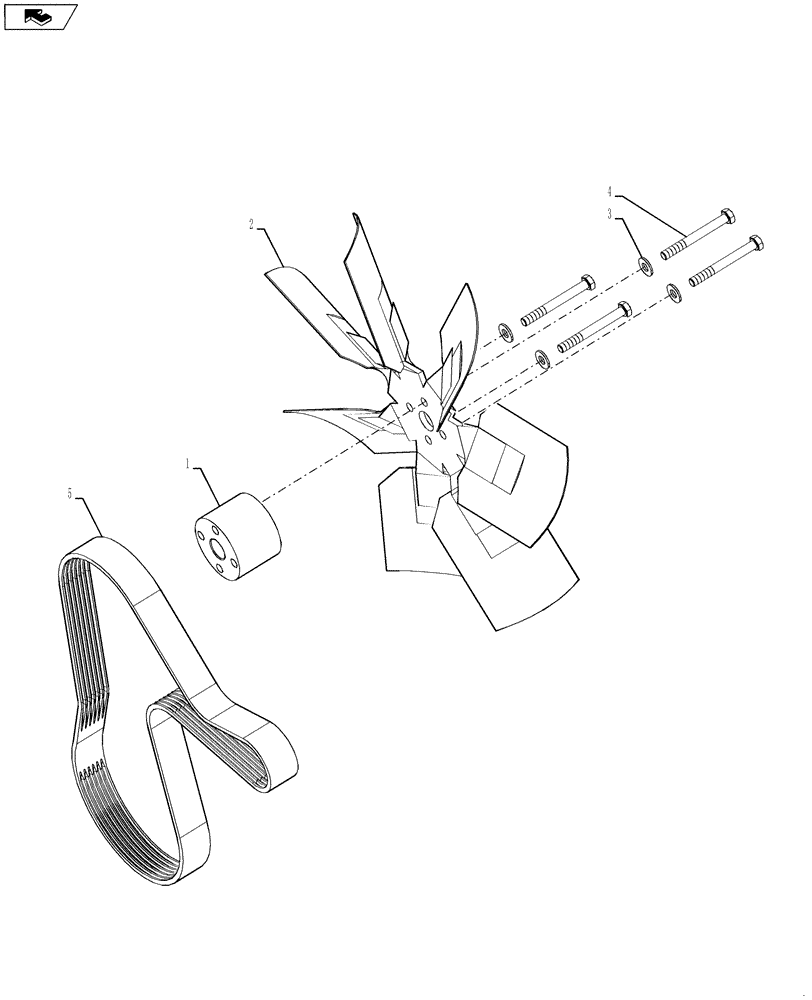

Запчасти Case 580SN (10.414.01[02]) - ENGINE FAN - 7BLADE (NON VISCOUS) (10) - ENGINE

1

87353191

SPACER

1шт.

2

228133A2

FAN,7 Blades, 20 OD, CW Rotation

500mm, 39 Degree

1шт.

2

185377A1

FAN,7 blade, 499mm, CW rotation

499mm, 33 degree

1шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

5

84278184

BELT,28.28mm W x 1470mm L, 8 Ribs

1шт.
