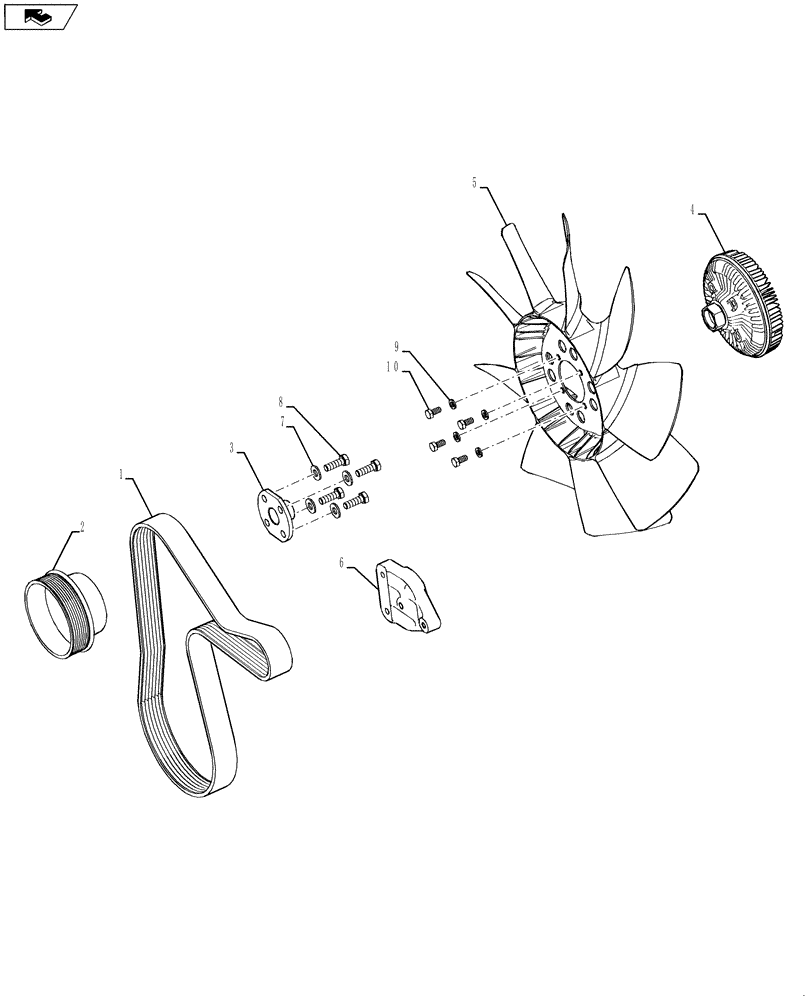

Запчасти Case 580SN (10.414.01[01]) - ENGINE FAN - 9 BLADE (VISCOUS) (10) - ENGINE

1

84278183

BELT,28.28mm W x 1440mm L, 8 Ribs

1шт.

2

4890343

PULLEY,130.25mm OD

1шт.

3

303192A1

ADAPTER

1шт.

4

87340008

DRIVE

1шт.

5

277800A1

FAN,9 Blades, 500.1mm OD

500mm 9 Blade

1шт.

6

84147468

BRACKET, SUPPORTING

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

9

892-11008

LOCK WASHER,8mm ID

4шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.
