Запчасти Case 580SN (10.408.01) - OIL FILTER AND COOLER (580SN, 580SN WT, 590SN) (10) - ENGINE

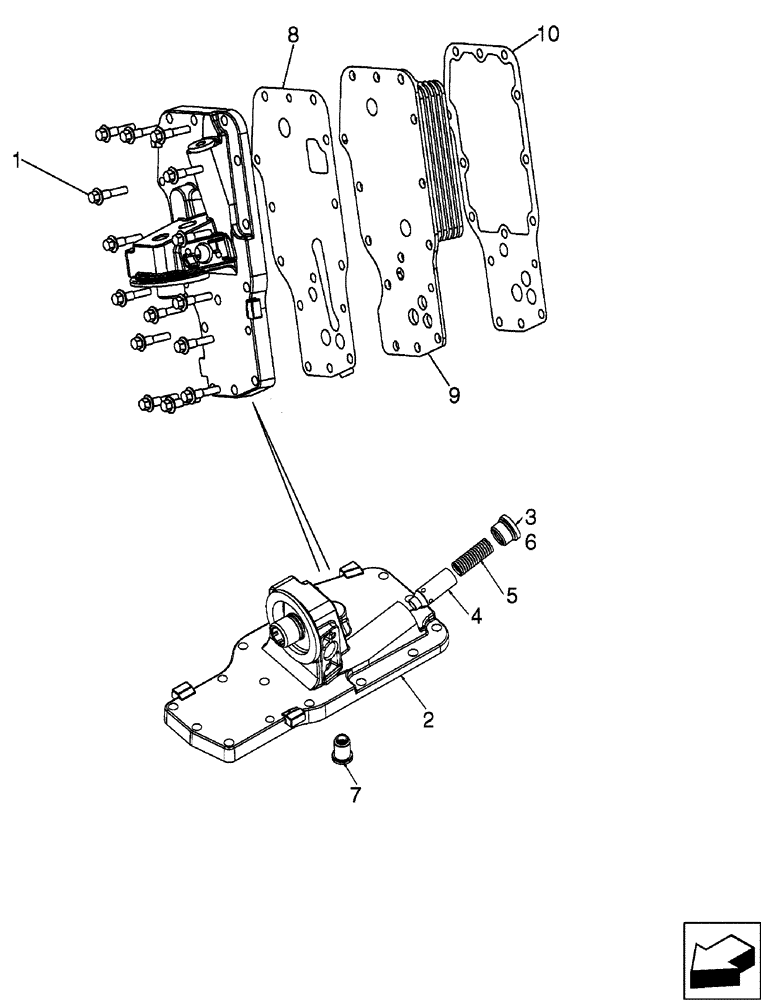

Схема запчастей Case 580SN - (10.408.01) - OIL FILTER AND COOLER (580SN, 580SN WT, 590SN) (10) - ENGINE
2
6
5
10
1
7
9
8
3
4

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2853780

FILTER HEAD

HOUSING ASSY Incl. 2 - 7

1шт.

2

4899566

FILTER HEAD

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

Incl. 6

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Reg.

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4896409

GASKET,1.55mm Thk

1шт.

9

2853722

HEAT EXCHANGER

1шт.

10

2830559

GASKET,0.5mm Thk

1шт.

Выбрано товаров: 11
