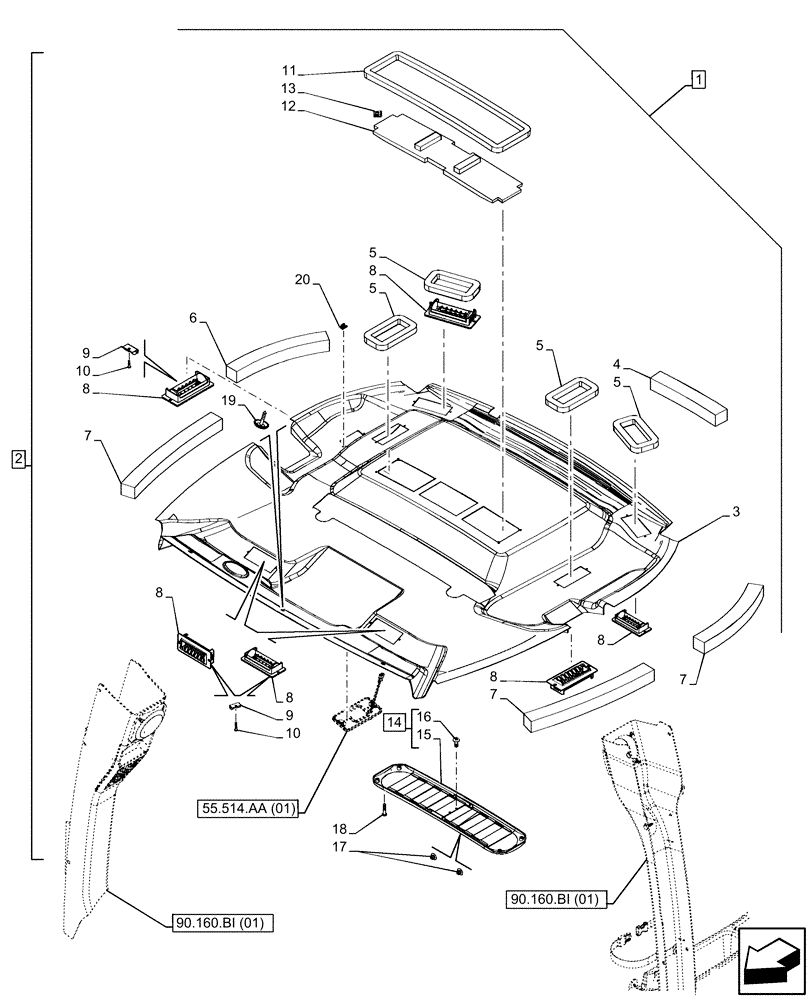

Запчасти Case 580SN (88.100.90[16]) - DIA KIT, CONVERSION KIT, DELUXE CAB, NARROW (88) - ACCESSORIES

1

47605400

CONSTRUCTION DIA

Cab, Delux Conversion, Narrow, Incl 2 - 20

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84224380

HEADLINER

ASSY, Incl 3 - 18, 20

1шт.

3

84224382

HEADLINER

1шт.

4

379209A1

SEAL,303mm L

1шт.

5

84499076

GASKET,174mm L x 97mm L

4шт.

6

379161A1

SEAL,379mm L

2шт.

7

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

2шт.

8

363883A1

LOUVER

8шт.

9

125749A1

SPRING NUT

16шт.

10

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

11

381972A1

SEAL,592.5mm L

1шт.

12

377594A5

FILTER

1шт.

13

177269A1

SPRING NUT,M4.2

4шт.

14

369450A1

GRILLE

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

17

409723A1

PLUG

4шт.

18

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

19

47602865

SCREW,Phillips Drive, Oval HD, M16 x 1

3шт.

20

131-861

SPRING NUT,Tinn, U, #10-24

2шт.
