Запчасти Case 580SN (88.100.90[13]) - DIA KIT, CONVERSION KIT, CANOPY, NARROW (88) - ACCESSORIES

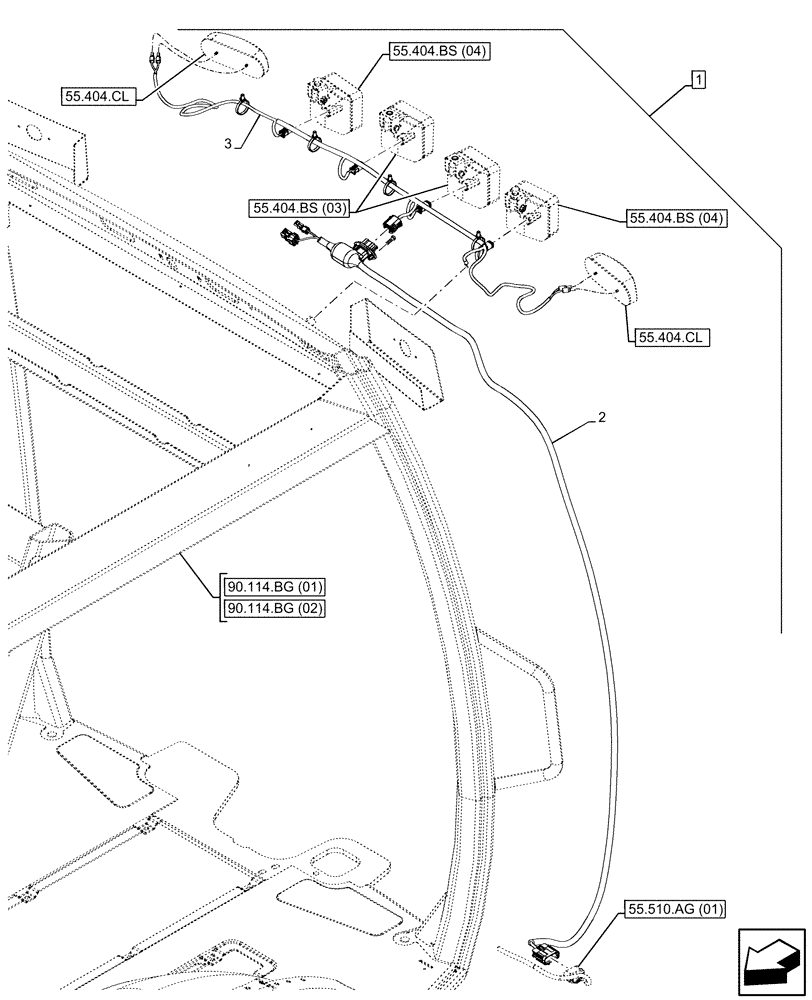

![Схема запчастей Case 580SN - (88.100.90[13]) - DIA KIT, CONVERSION KIT, CANOPY, NARROW (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5370941.png)
55.404.bs (04)
55.404.cl
2
55.404.cl
55.404.bs (03)
90.114.bg (01)
1
55.510.ag (01)
3
55.404.bs (04)
90.114.bg (02)
№
Артикул
Название
Примечание
Количество
1
47605397
CONSTRUCTION DIA
Canopy, Conversion Narrow, Incl 2, 3
1шт.
Refer to Installation Instructions P/N for Correct Assembly Procedure
1шт.
2
47533371
WIRE HARNESS
A-Post, Canopy
1шт.
3
47533334
WIRE HARNESS
Front Lights, Canopy
1шт.
Выбрано товаров: 4
