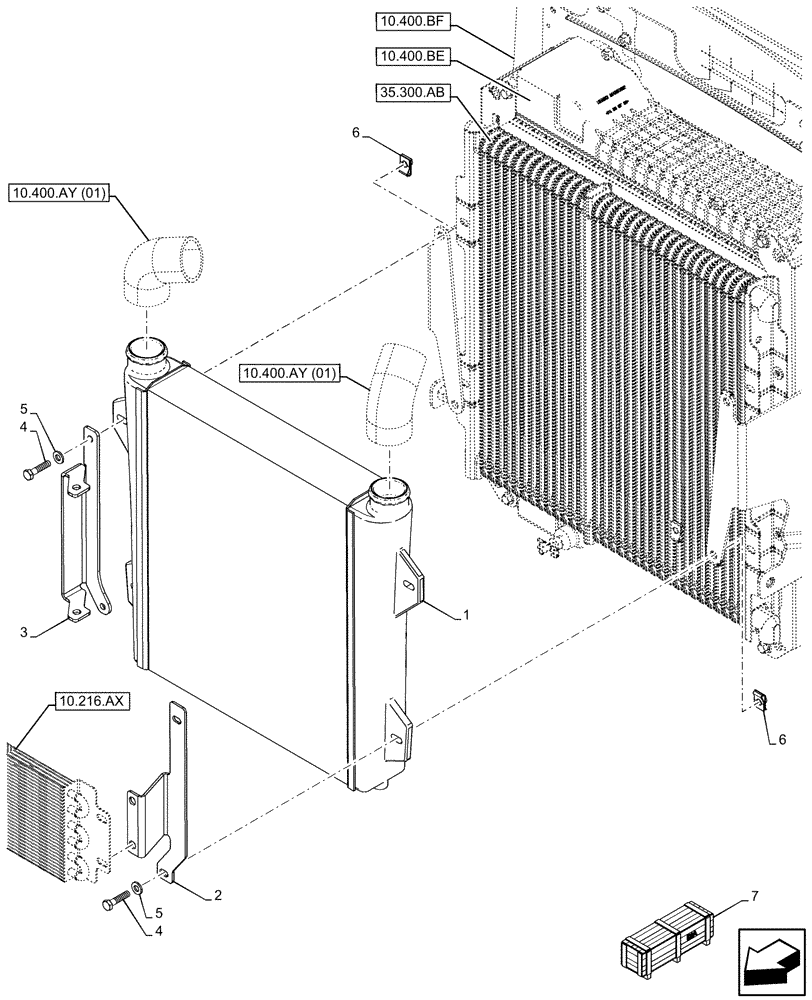

Запчасти Case 580SN (10.310.AA) - VAR - 423000, 442082, 747853, 747854, 747855 - AFTERCOOLER (10) - ENGINE

1

87611122

COOLER

Air

1шт.

2

87606979

BRACKET

LH

1шт.

3

87606977

BRACKET, PIVOT

RH

1шт.

4

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

833-40408

NUT,M8, U

4шт.

7

47699070

CONSTRUCTION DIA

Air Conditioning HPCR, Incl 2 - 4, 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
