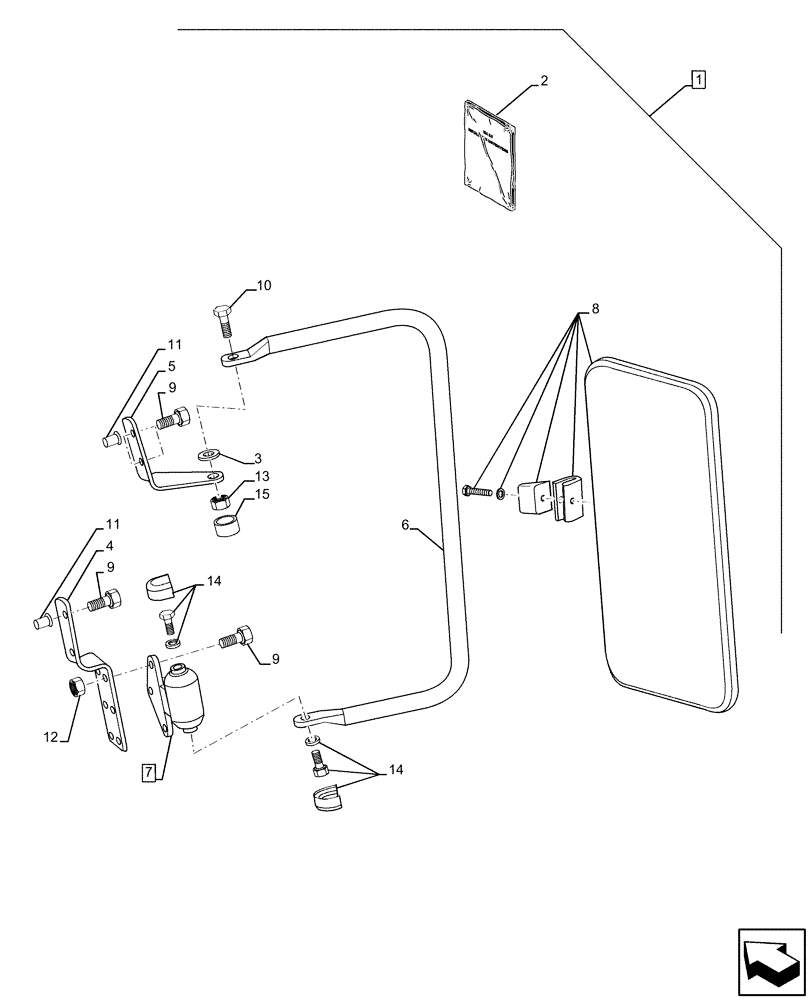

Запчасти Case 580SN (88.100.90[01]) - DIA KIT, REAR VIEW MIRROR (88) - ACCESSORIES

1

397974A1

CONSTRUCTION DIA

Mirror install, Outside Cab, Incl 2 - 15

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84375796

INSTRUCTION

1шт.

3

A167037

WASHER

Nylon

2шт.

4

402936A1

BRACKET

Lower

2шт.

5

402933A1

BRACKET

Upper

1шт.

5

402934A1

BRACKET

Upper

1шт.

6

402935A1

SUPPORT TUBE

2шт.

7

D142144

HINGE

2шт.

8

R54682

MIRROR

Convex

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

14шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

255447A1

THREADED INSERT

10шт.

12

131-71

NUT

6шт.

13

131-665

LOCK NUT,5/16"-18, GB

2шт.

14

NSS

NOT SOLD SEPARAT

Covers and Attaching Parts, Incl in 7

1шт.

15

255605A1

TOOL KIT

1шт.
