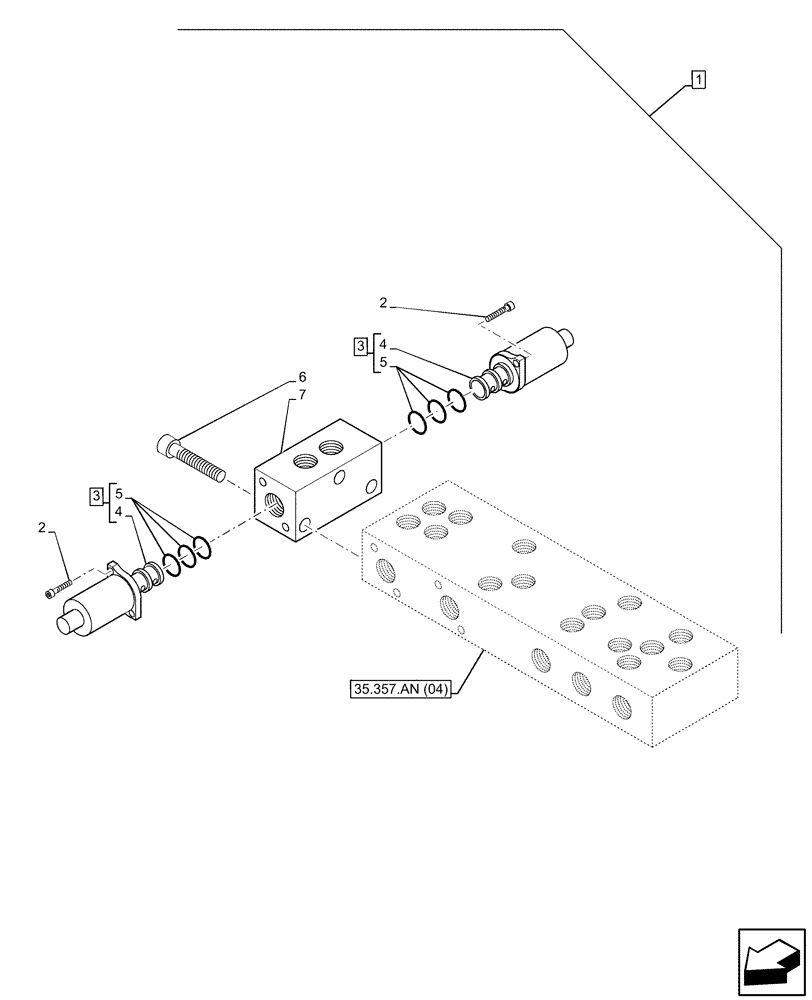

Запчасти Case 580SN (88.100.35[62]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROLS, STANDARD DIPPER, BLOCK (88) - ACCESSORIES

1

47670289

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper, Incl 2 - 7

1шт.

2

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract PWM, Extendahoe Extend PWM

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

2шт.

5

85828000

SEAL KIT

2шт.

6

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

7

85828004

BODY

1 Function

1шт.

Extension Block added for Optional Extendahoe

1шт.
