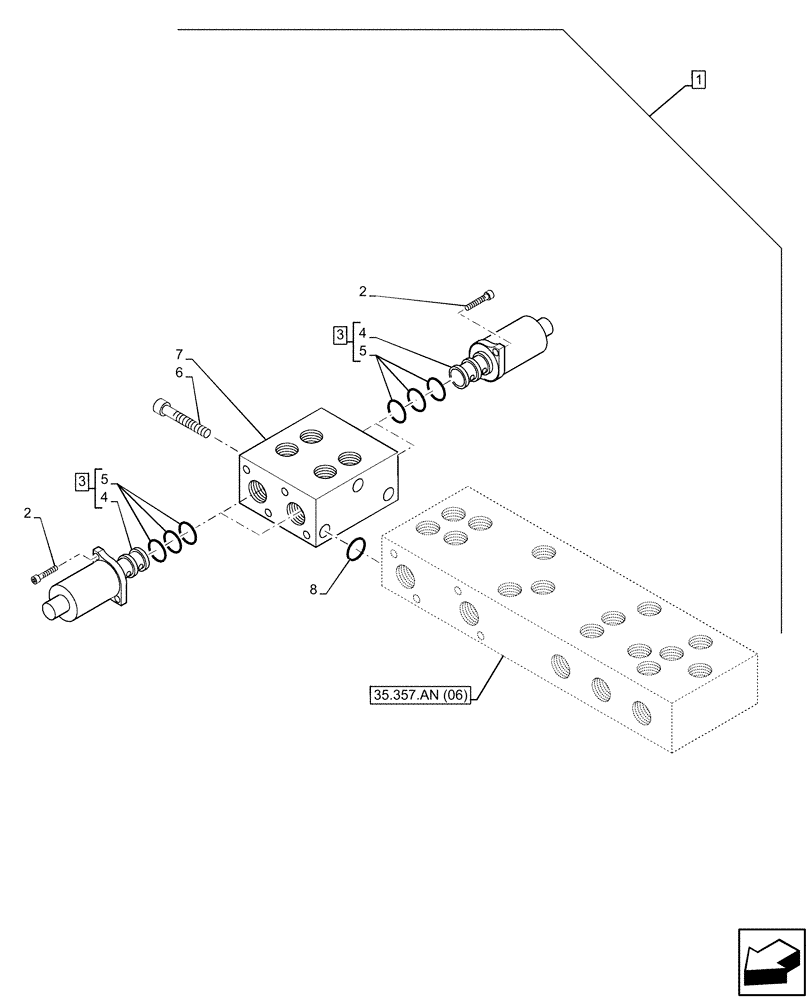

Запчасти Case 580SN (88.100.35[41]) - DIA KIT, BI-AUXILIARY PR VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES

1

87366503

HYDRAULIC VALVE

Bi-Auxiliary, PR Valve Section, Pilot Control, Incl 2 - 8

1шт.

2

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 4 (Qty 1), 5 (Qty 1)

4шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract/Extend PWM, Bi-Dir Aux A/B Port PWM

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

4шт.

5

85828000

SEAL KIT

4шт.

6

85828003

O-RING,1mm Thk x 9mm ID

3шт.

7

85828048

MANIFOLD VALVE

2 Function

1шт.

Extension Block added for Optional Extendahoe and Bi-Dir Aux Functions

1шт.

8

85827999

SEAL KIT

1шт.
