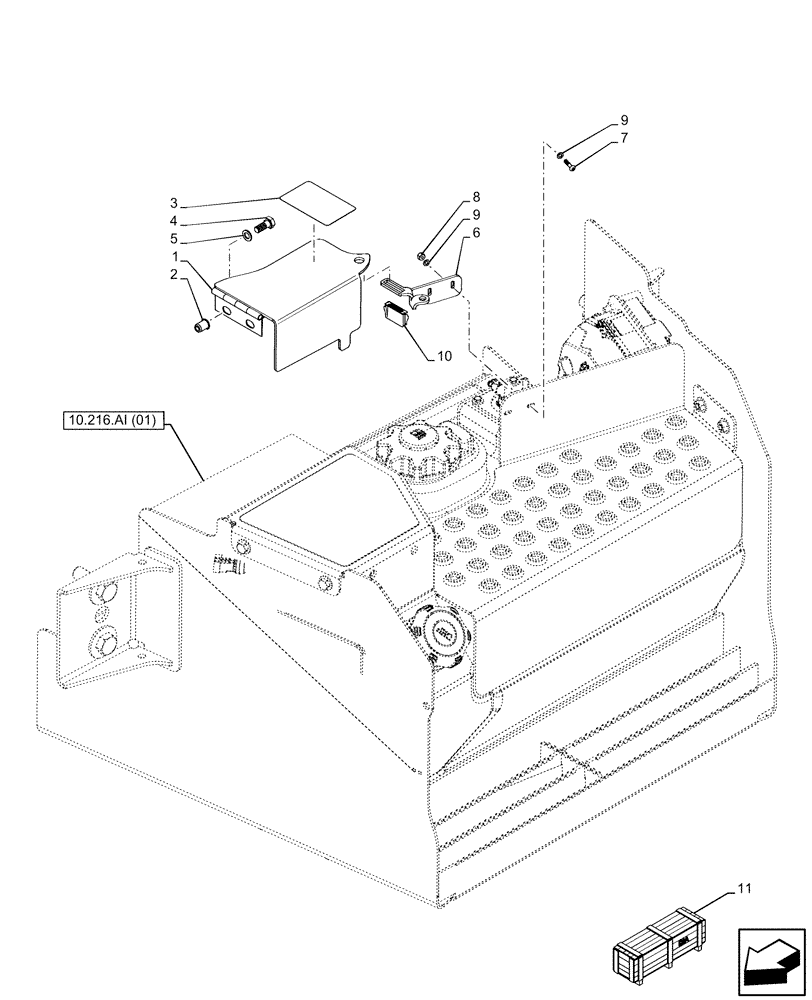

Запчасти Case 580SN (10.216.AI[02]) - VAR - 745167 - FUEL TANK, COVERS (10) - ENGINE

1

47732078

COVER

Fuel Cap

1шт.

2

84471590

INSERT

2шт.

3

82029420

DECAL

No Step

1шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

6

47664019

BRACKET

1шт.

7

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

2шт.

8

231-14409

NUT,#10-24, GB

2шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

10

47664017

MAGNET

1шт.

11

47824963

CONSTRUCTION DIA

Locking Covers, Incl 1 - 3, 6 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
