(88.100.35[33]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER

Запчасти Case 580SN (88.100.35[33]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER (88) - ACCESSORIES

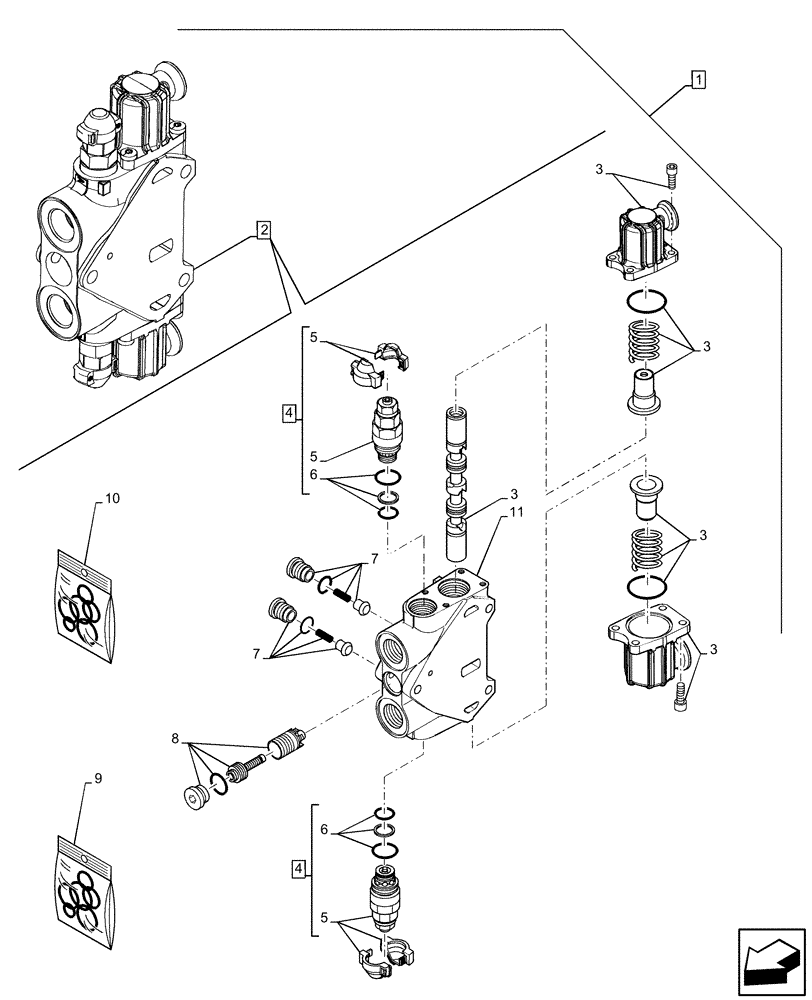

Схема запчастей Case 580SN - (88.100.35[33]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER (88) - ACCESSORIES
5
3
6
3
4
7
1
11
2
5
6
7
9
4
3
3
3
8
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84412228

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper, Incl 2 - 11

1шт.

2

84278691

HYD VALVE SECTION

BI-DIR Pilot, ASSY, Incl 3 - 11

1шт.

3

85826344

KIT,Operation

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220bar, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

2шт.

6

85811933

SEAL KIT,Secondary Valve

2шт.

7

85811938

KIT,Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.
