Запчасти Case 580SN (88.100.35[29]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, EXTENDABLE DIPPER (88) - ACCESSORIES

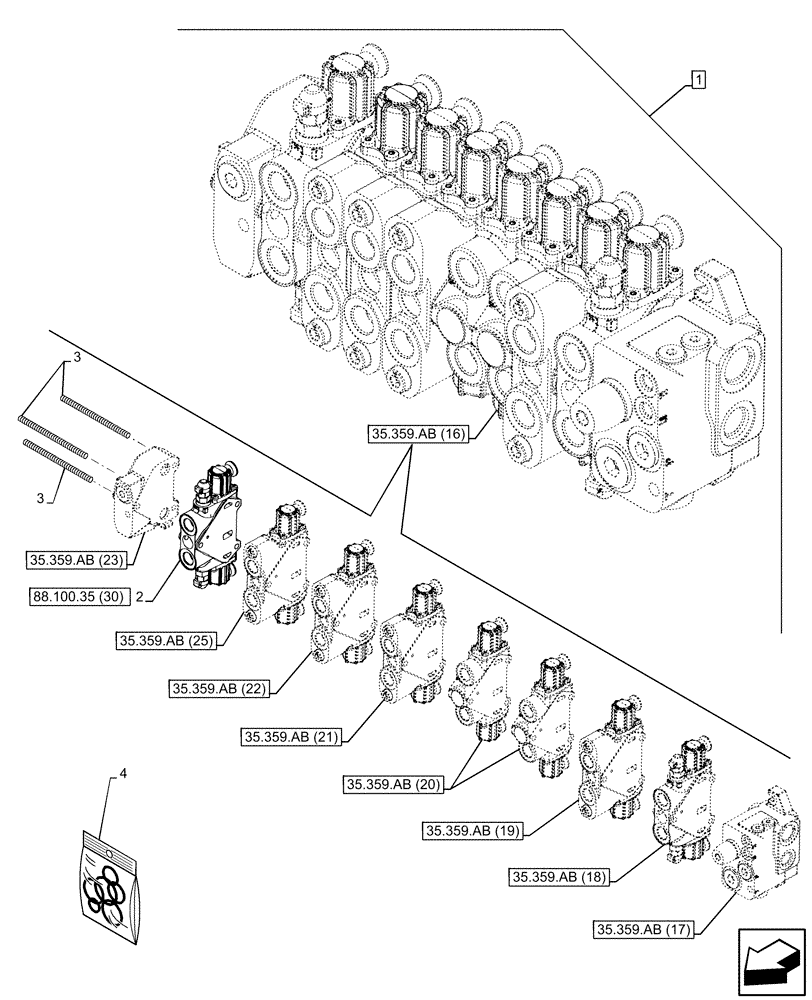

Схема запчастей Case 580SN - (88.100.35[29]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, EXTENDABLE DIPPER (88) - ACCESSORIES
35.359.ab (22)
3
35.359.ab (17)
35.359.ab (20)
35.359.ab (25)
35.359.ab (23)
35.359.ab (21)
35.359.ab (16)
3
88.100.35 (30)
35.359.ab (19)
4
35.359.ab (18)
2
1

Артикул

Название

Примечание

Количество

1

84412227

SERVICE KIT

Dual Auxiliary, Pilot Control, Extendable Dipper, Incl 2 - 4

1шт.

2

84278691

HYD VALVE SECTION

BI-DIR Pilot, ASSY

1шт.

3

87447477

SET OF PARTS

3шт.

4

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

Выбрано товаров: 4
