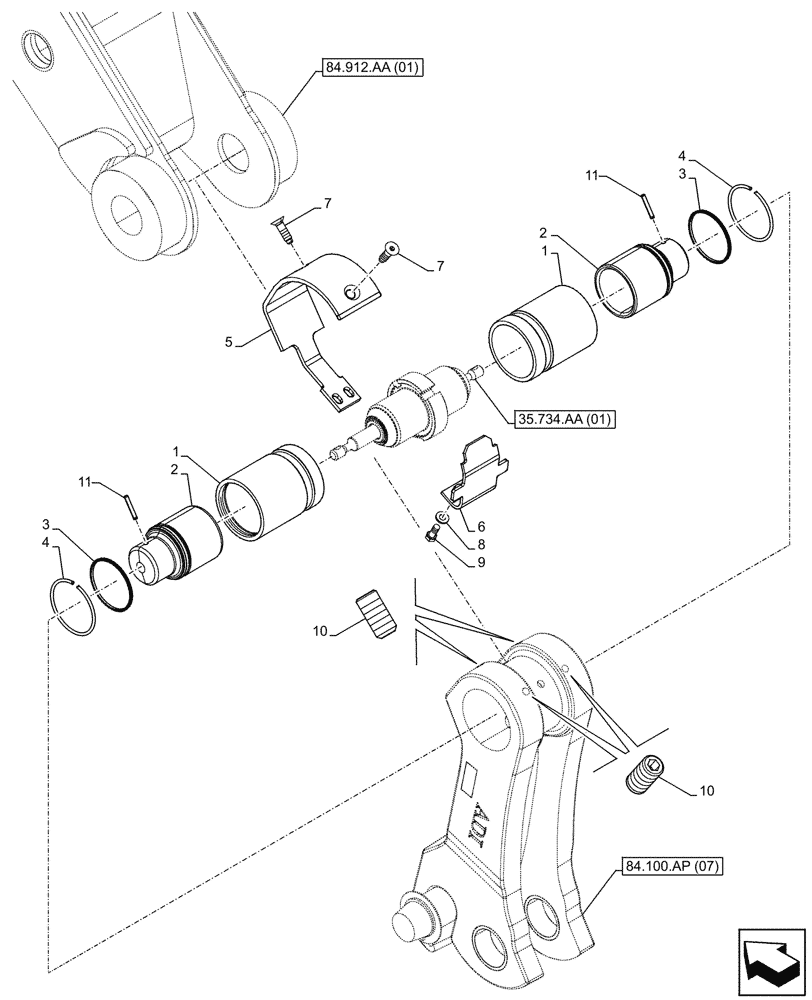

Запчасти Case 580SN (84.100.AP[09]) - VAR - 442017 - BACKHOE BUCKET, HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

1

448676A1

HYD CYL SLEEVE,76.4mm ID x 88.8mm OD x 112.5mm L

2шт.

2

84249377

PIN,78.2mm OD x 114.5mm L

Coupler Stepped

2шт.

3

434891A1

WIPER SEAL

2шт.

4

406624A1

RING,81.38mm OD, Ext

2шт.

5

84288091

GUARD

1шт.

6

84300757

GUARD

1шт.

7

84317837

COUNTERSUNK SCREW

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

9

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

10

418070A1

SET SCREW,M10 x 20mm

4шт.

11

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.
