(84.100.AM[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, BUSHING

Запчасти Case 580SN (84.100.AM[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS

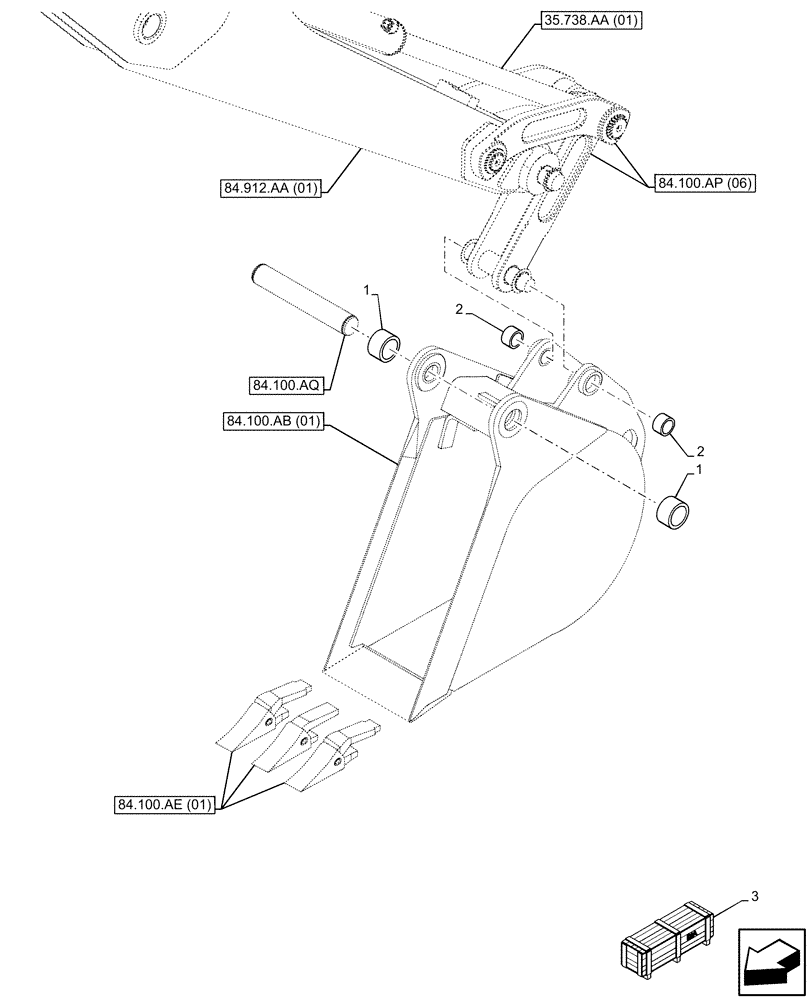

Схема запчастей Case 580SN - (84.100.AM[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, BUSHING (84) - BOOMS, DIPPERS & BUCKETS
2
1
84.100.ae (01)
2
35.738.aa (01)
84.100.ab (01)
84.100.aq
84.912.aa (01)
3
84.100.ap (06)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

2

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

3

84467272

BUCKET

Bucket, 12 Inch Universal, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
