(84.100.AE[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, TEETH

Запчасти Case 580SN (84.100.AE[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS

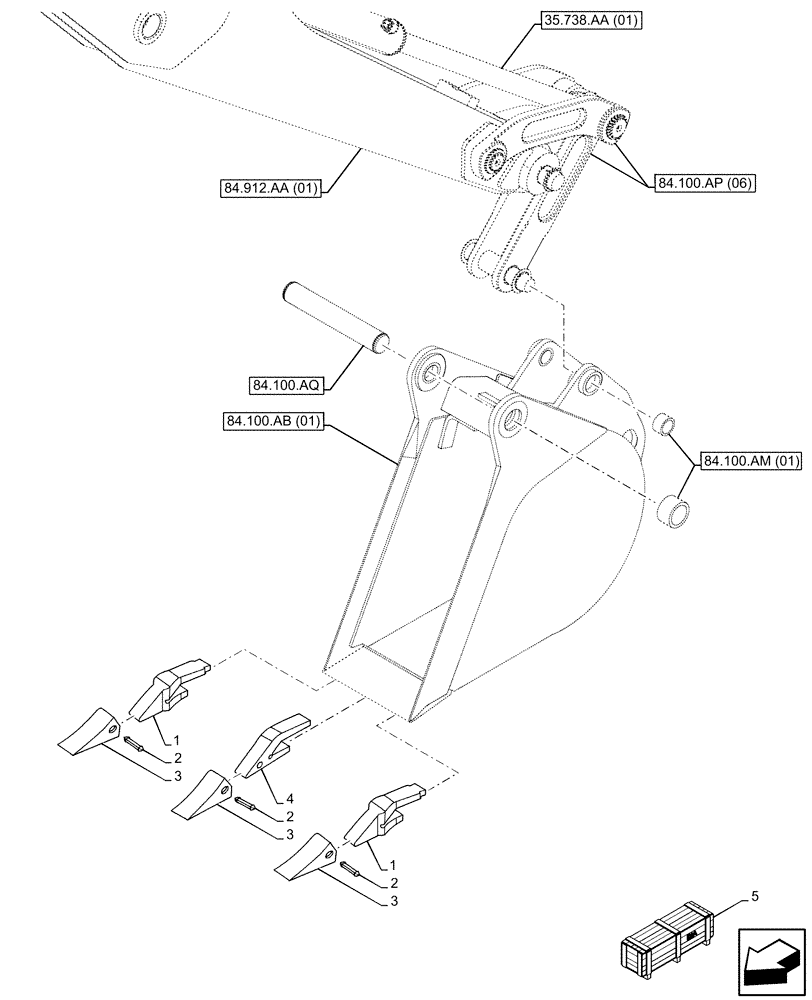

Схема запчастей Case 580SN - (84.100.AE[01]) - VAR - 423066 - BUCKET, UNIVERSAL 12INCH/305MM, TEETH (84) - BOOMS, DIPPERS & BUCKETS
3
1
35.738.aa (01)
84.912.aa (01)
84.100.aq
2
5
4
2
2
1
3
84.100.ap (06)
84.100.am (01)
3
84.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84424392

BUCKET TOOTH SHANK

Outer

2шт.

2

84318739

BUCKET TOOTH KEY

3шт.

3

84318713

BUCKET TOOTH

3шт.

4

84318729

BUCKET TOOTH SHANK

Center

1шт.

5

84467272

BUCKET

Bucket, 12 Inch Universal, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
