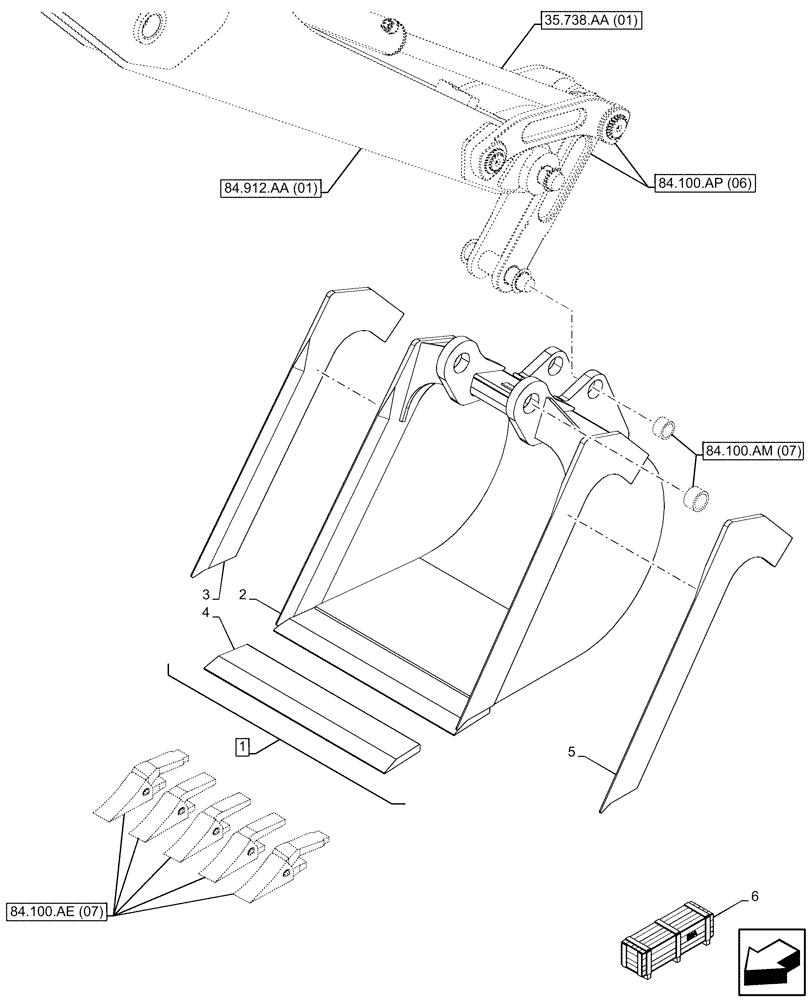

Запчасти Case 580SN (84.100.AB[07]) - VAR - 423065 - BUCKET, HIGH CAPACITY 30INCH/762MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416567

BUCKET,30 Inch HI-CAP

ASSY, 30Inch/762mm, HI-CAP, with 5 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (07), 82.100.AM (07)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

141233A1

EDGE, CUTTING

LH

1шт.

4

D145061

EDGE, CUTTING

1шт.

5

141234A1

EDGE, CUTTING

RH

1шт.

6

84467278

BUCKET

Bucket, 30 Inch HI-Capacity, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
