Запчасти Case 580SN (84.100.AB[06]) - VAR - 423072 - BUCKET, HIGH CAPACITY 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS

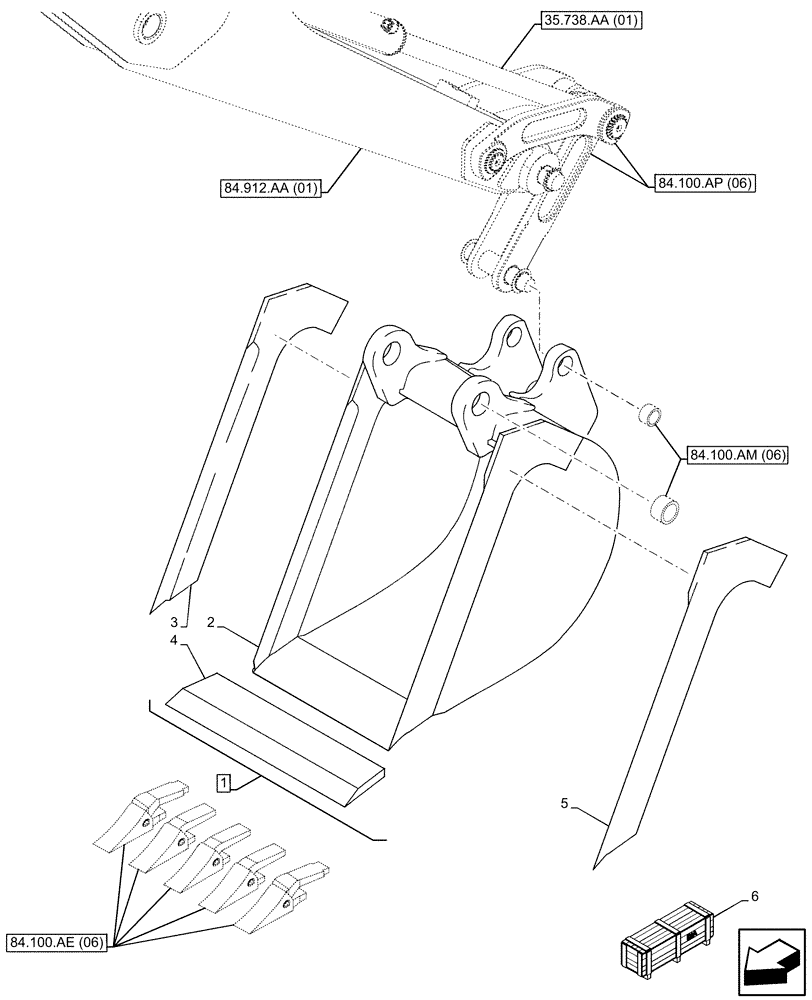

Схема запчастей Case 580SN - (84.100.AB[06]) - VAR - 423072 - BUCKET, HIGH CAPACITY 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS
84.100.am (06)
1
6
3
2
5
4
84.100.ap (06)
35.738.aa (01)
84.100.ae (06)
84.912.aa (01)

Артикул

Название

Примечание

Количество

1

84416565

BUCKET,24 Inch HI-CAP

ASSY, 24in/610mm, HI-CAP, with 5 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (06), 82.100.AM (06)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

141233A1

EDGE, CUTTING

LH

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

1шт.

5

141234A1

EDGE, CUTTING

RH

1шт.

6

84467277

BUCKET

Bucket, 24in HI-Capacity, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
