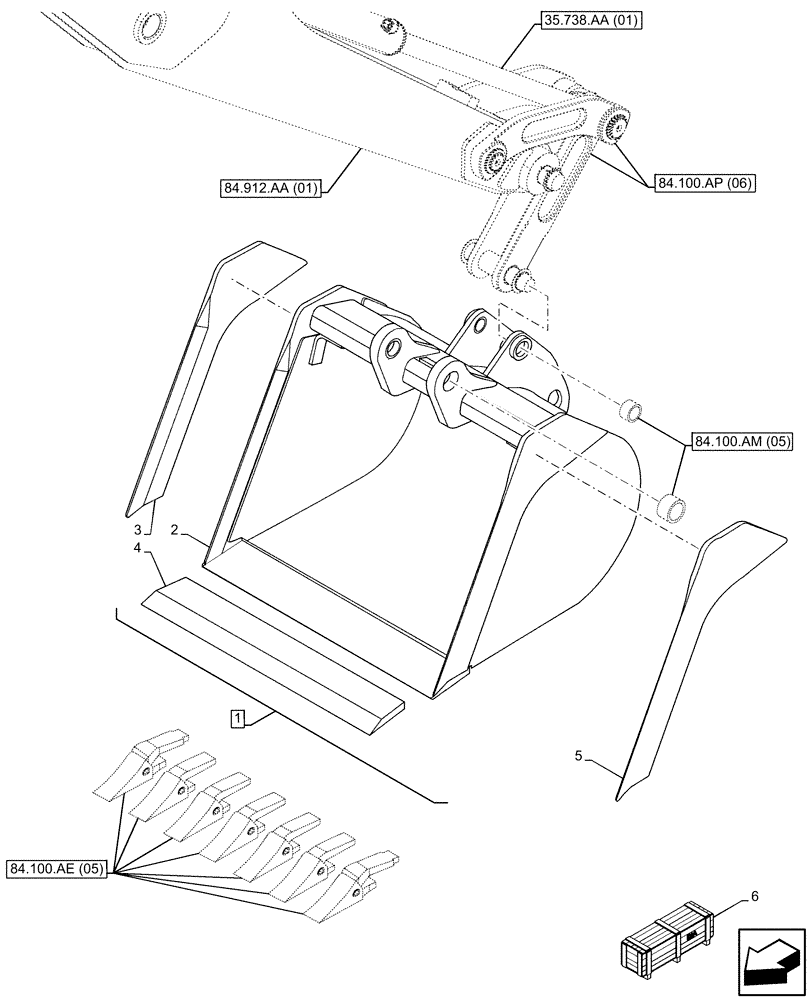

Запчасти Case 580SN (84.100.AB[05]) - VAR - 423071 - BUCKET, UNIVERSAL 36INCH/914MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416563

BUCKET,36 Inch HD

ASSY, 36in/914mm, Universal, with 7 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (05), 82.100.AM (05)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

365941A1

CUTTING EDGE

LH

1шт.

4

370748A1

CUTTING EDGE,Welded, 25.4mm W x 907mm L

1шт.

5

365942A1

CUTTING EDGE

RH

1шт.

6

84467276

BUCKET

Bucket, 36in Universal, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
