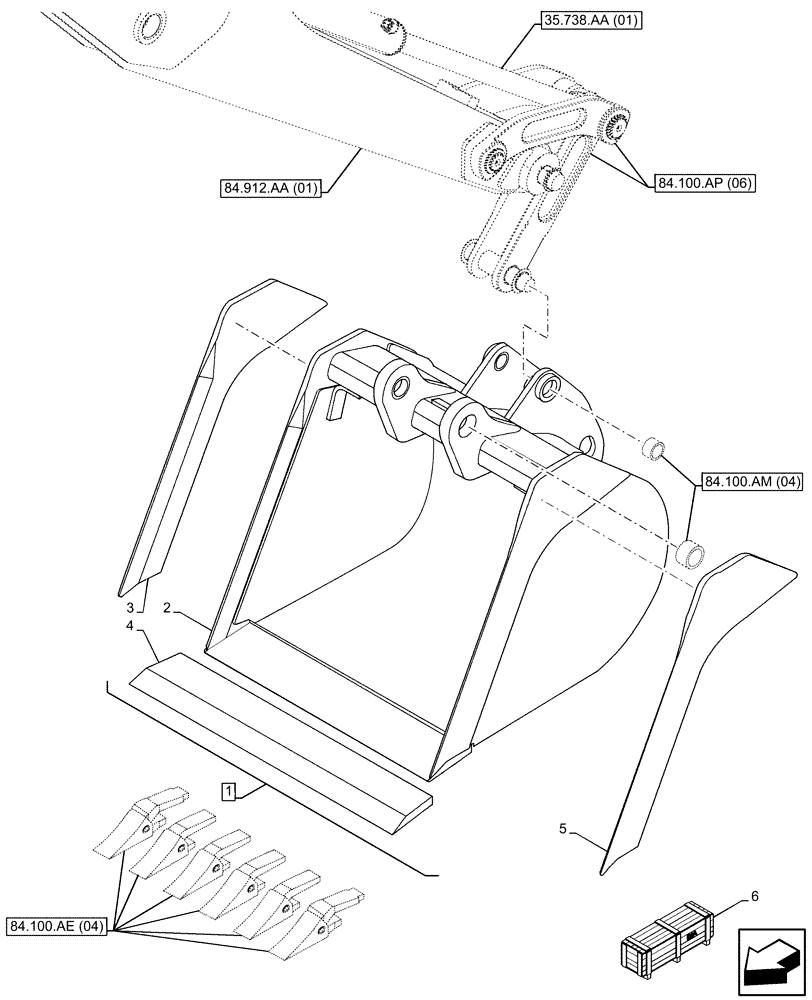

Запчасти Case 580SN (84.100.AB[04]) - VAR - 423070 - BUCKET, UNIVERSAL 30INCH/762MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416561

BUCKET,30 Inch HD

ASSY, 30in/762mm, Universal, with 6 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (04), 82.100.AM (04)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

365941A1

CUTTING EDGE

LH

1шт.

4

370364A1

EDGE, CUTTING

1шт.

5

365942A1

CUTTING EDGE

RH

1шт.

6

84467275

BUCKET

Bucket, 30in Universal, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
