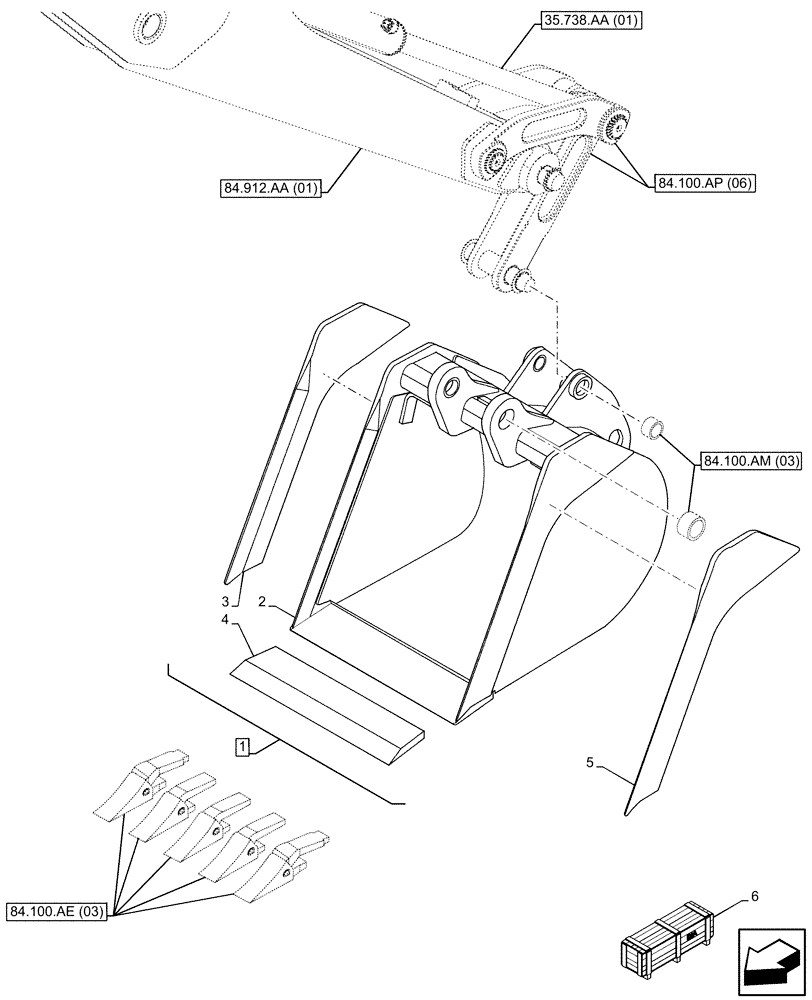

Запчасти Case 580SN (84.100.AB[03]) - VAR - 423069 - BUCKET, UNIVERSAL 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416559

BUCKET,24 Inch HD

ASSY, 24in/610mm, Universal, with 5 Teeth, Incl 2 - 5

1шт.

See Bucket Components also in Figure 82.100.AE (03), 82.100.AM (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Bicket, Incl in 1

1шт.

3

365941A1

CUTTING EDGE

LH

1шт.

4

329554A2

CUTTING EDGE,Welded, 25.4mm W x 603mm L

1шт.

5

365942A1

CUTTING EDGE

RH

1шт.

6

84467274

BUCKET

Bucket, 24in Universal, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
