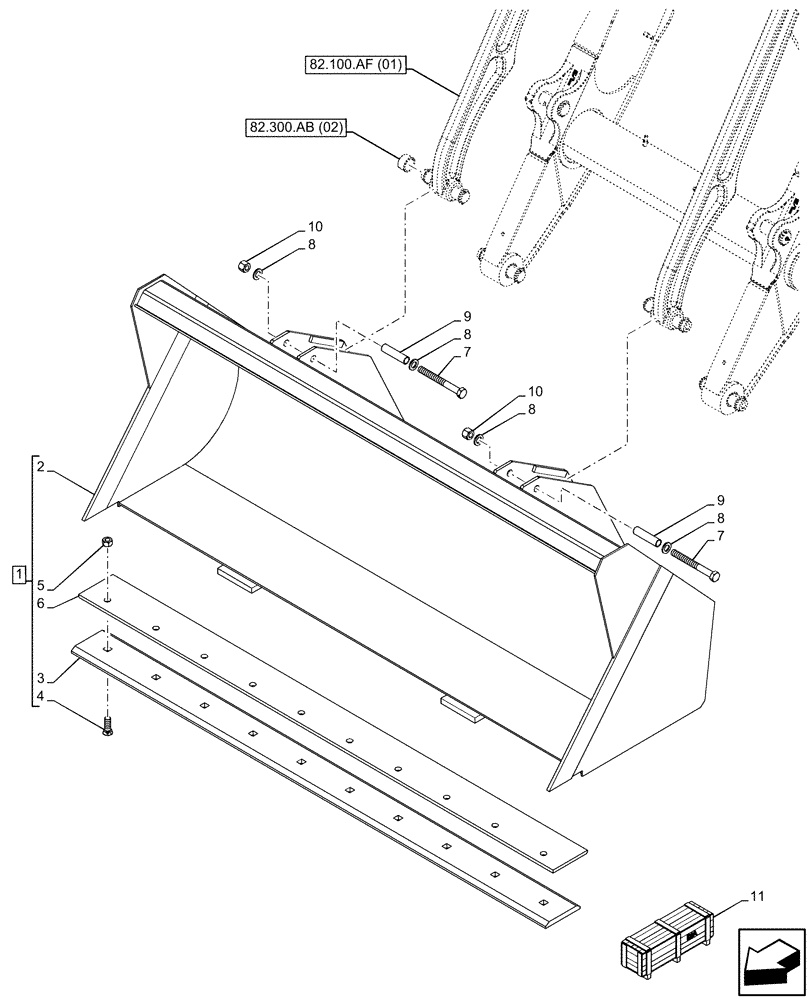

Запчасти Case 580SN (82.300.AN[03]) - VAR - 747862 - BUCKET, 1YD - 82INCH/2083MM HD LL (82) - FRONT LOADER & BUCKET

1

84470521

BUCKET,82 Inch W/ Blade

1YD 82Inch/2083mm, ASSY, Incl 2 - 10

1шт.

See Bucket Components also in Figure 82.300.AB (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

10шт.

6

113457A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2113mm L

1шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

84482606

BUCKET

Bucket 82 Inch W/ Blade, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
