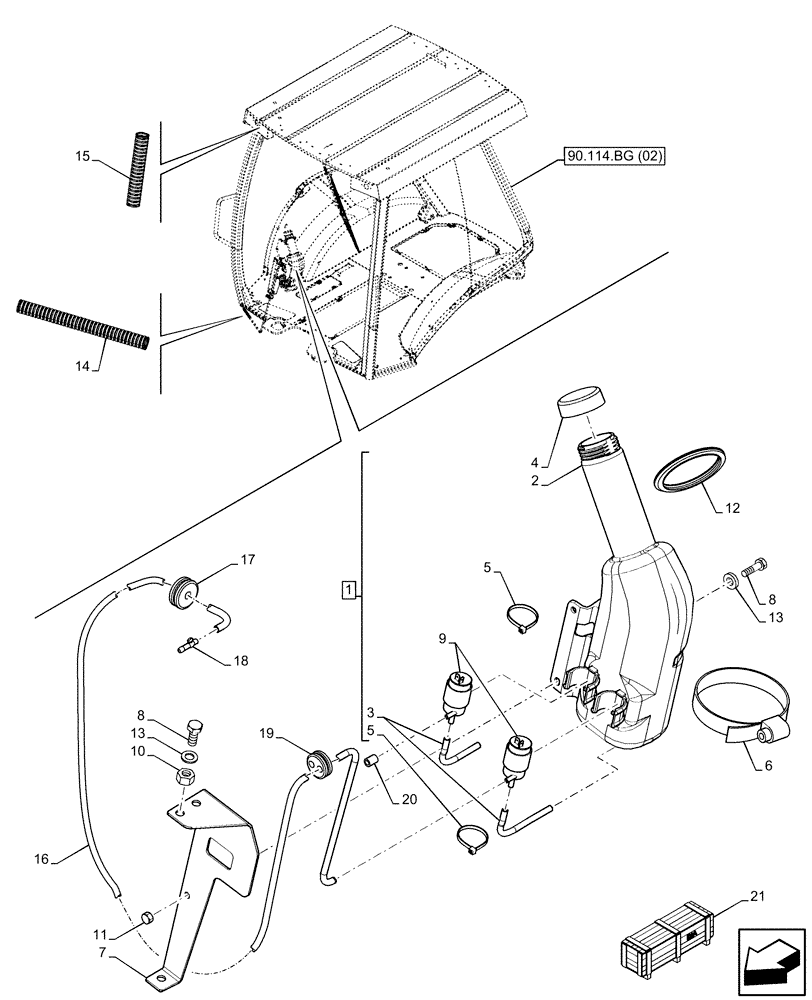

Запчасти Case 580SN (55.518.AP[02]) - VAR - 423000 - DELUXE, CANOPY, WINDSHIELD WASH RESERVOIR (55) - ELECTRICAL SYSTEMS

1

87675209

RESERVOIR, WINDSHIEL

ASSY, Incl 2 - 5, 9

1шт.

2

87675208

RESERVOIR, WINDSHIEL

1шт.

3

87700794

HOSE WASHER,4.76 mm ID x 135.00 mm

2шт.

4

87711985

FILLER CAP

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

6

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

1шт.

7

87491347

BRACKET

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

9

86507198

PUMP,Windshield Washer

2шт.

10

833-40408

NUT,M8, U

3шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

87748047

SEAL,78mm ID x 106.6mm OD x 7mm Thk

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

14

87741447

HOSE PROTECTION,10.5mm ID x 1800mm L

10.5mm ID x 14.8mm OD x 1800mm L

1шт.

15

408965A1

GUARD

10.5mm ID x 14.0mm OD x 550mm L

1шт.

16

84560747

HOSE,4mm ID x 4100mm L

3.56mm ID x 4.37mm OD x 4100mm L

1шт.

17

87442441

GROMMET,27mm OD, 9.53mm ID, 11.1mm L

1шт.

18

84562347

COUPLING

1шт.

19

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

1шт.

20

87441758

CAP

1шт.

21

47605397

CONSTRUCTION DIA

Canopy Conversion Narrow, Incl 1 - 20

1шт.

Valid for 580N, 580SM Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

21

47605399

CONSTRUCTION DIA

Canopy Conversion Wide, Incl 1 - 20

1шт.

Valid for 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
