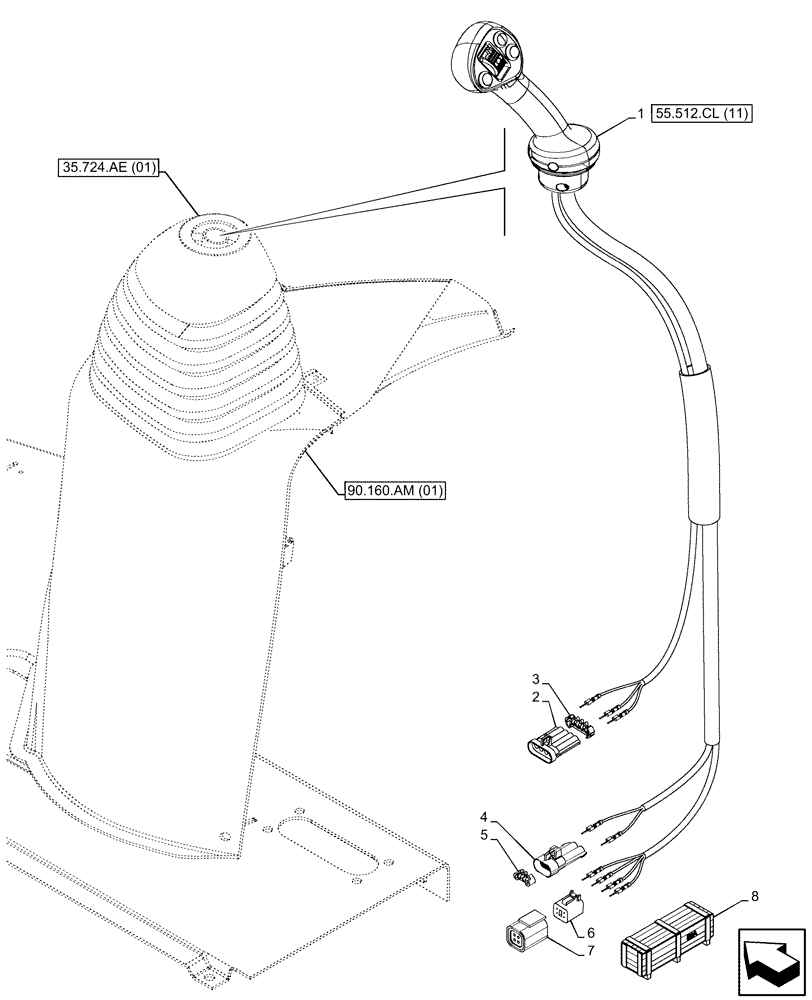

Запчасти Case 580SN (55.512.CL[10]) - 3-SPOOL, MECHANICAL, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS

1

87638044

JOYSTICK

ASSY, Loader Control 4 Button

1шт.

2

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

3

258616A1

LOCK

1шт.

4

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

5

258613A1

LOCK

1шт.

6

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

7

225327C1

WEDGE,Lock, Black

1шт.

8

47661785

CONSTRUCTION DIA

Mechanical Control, 3 Spool, Powershift Transmission, Incl 1 - 7

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661824

CONSTRUCTION DIA

Mechanical Control, 3 Spool, Powershift Transmission, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47661814

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 1 - 7

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
