(55.511.AI[05]) - VAR - 442085 - CANOPY, WORK LIGHT, HARNESS

Запчасти Case 580SN (55.511.AI[05]) - VAR - 442085 - CANOPY, WORK LIGHT, HARNESS (55) - ELECTRICAL SYSTEMS

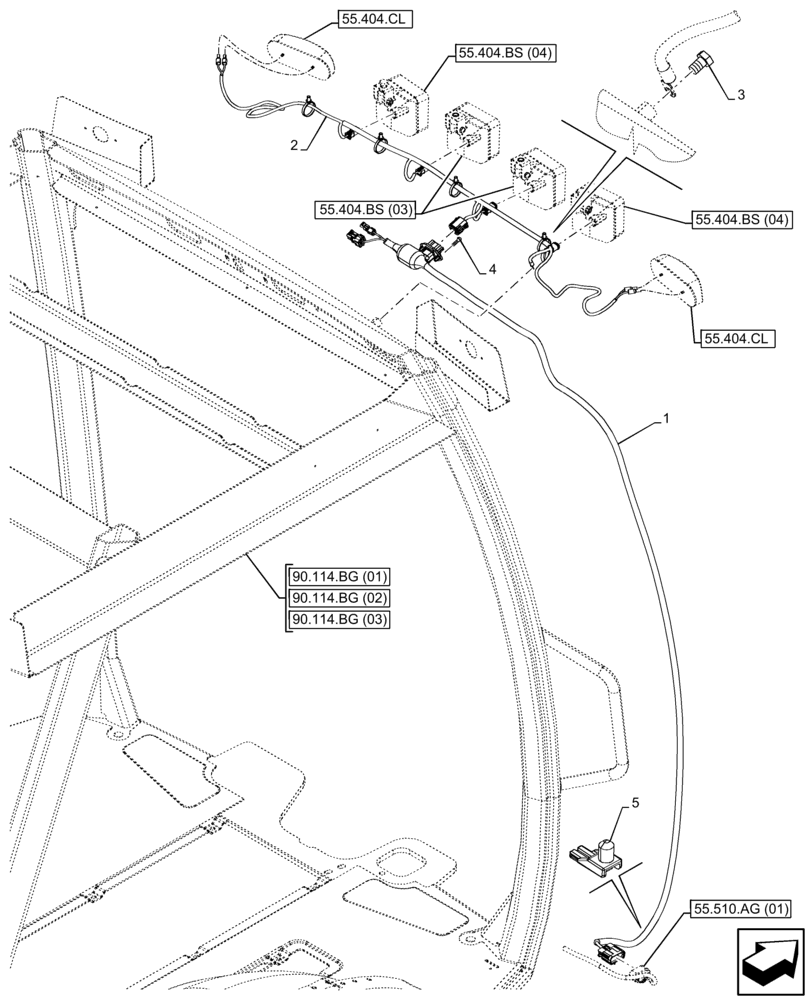

Схема запчастей Case 580SN - (55.511.AI[05]) - VAR - 442085 - CANOPY, WORK LIGHT, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.bs (03)
55.404.bs (04)
4
55.404.bs (04)
1
55.404.cl
3
90.114.bg (03)
2
55.404.cl
55.510.ag (01)
5
90.114.bg (01)
90.114.bg (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533371

WIRE HARNESS

A-Post, Canopy

1шт.

2

47533334

WIRE HARNESS

Front Lights, Canopy

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

4

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

5

87707841

CLIP,Hole DIA 6.35mm

1шт.
