(55.510.AH[01]) - VAR - 747854, 747855 - CAB ROOF, NARROW, WIRE HARNESS

Запчасти Case 580SN (55.510.AH[01]) - VAR - 747854, 747855 - CAB ROOF, NARROW, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

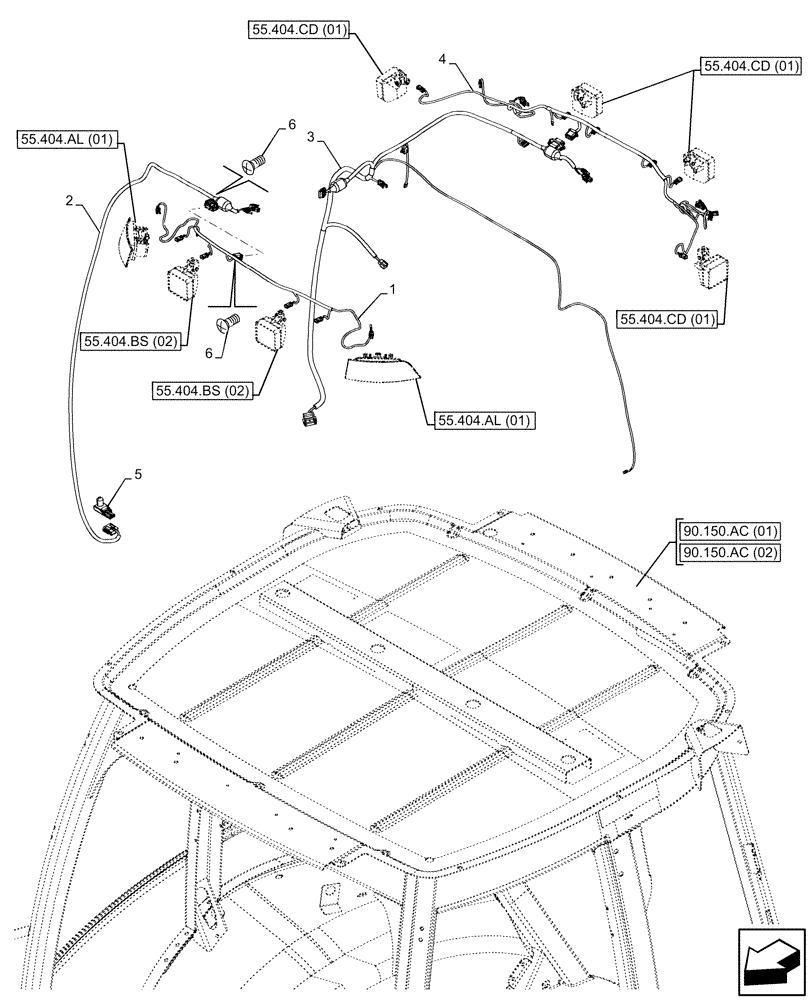

Схема запчастей Case 580SN - (55.510.AH[01]) - VAR - 747854, 747855 - CAB ROOF, NARROW, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
90.150.ac (01)
3
4
6
1
2
5
6
55.404.bs (02)
55.404.bs (02)
55.404.al (01)
55.404.al (01)
55.404.cd (01)
55.404.cd (01)
55.404.cd (01)
90.150.ac (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533355

WIRE HARNESS

Front Lights

1шт.

2

47533371

WIRE HARNESS

A - Post

1шт.

3

47533373

WIRE HARNESS

B - Post

1шт.

4

47533370

WIRE HARNESS

Rear Lights

1шт.

5

87707841

CLIP,Hole DIA 6.35mm

1шт.

6

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

4шт.
