(55.510.AG[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, RIGHT SIDE HARNESS

Запчасти Case 580SN (55.510.AG[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, RIGHT SIDE HARNESS (55) - ELECTRICAL SYSTEMS

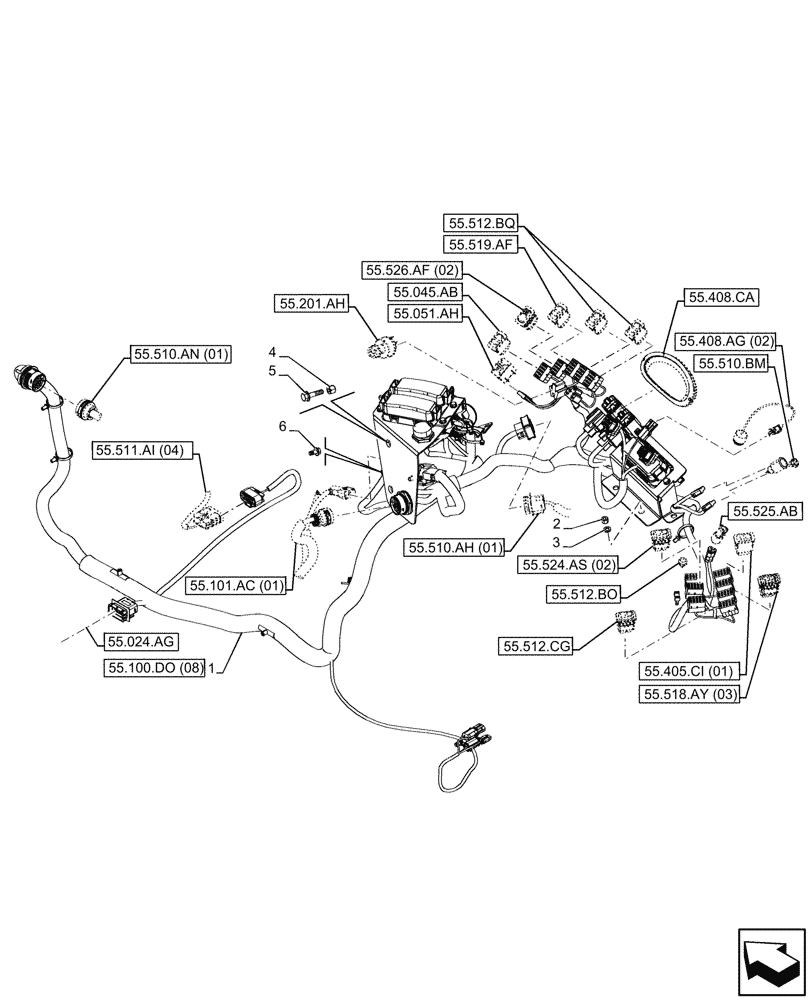

Схема запчастей Case 580SN - (55.510.AG[03]) - VAR - 423058, 423059 - POWERSHUTTLE TRANSMISSION, RIGHT SIDE HARNESS (55) - ELECTRICAL SYSTEMS
55.405.ci (01)
6
4
3
2
5
1
55.051.ah
55.510.an (01)
55.512.cg
55.100.do (08)
55.101.ac (01)
55.518.ay (03)
55.511.ai (04)
55.526.af (02)
55.510.ah (01)
55.524.as (02)
55.024.ag
55.045.ab
55.201.ah
55.512.bq
55.512.bo
55.408.ca
55.510.bm
55.519.af
55.408.ag (02)
55.525.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47512894

WIRE HARNESS

Side Console, Standard Transmission, ASSY

1шт.

2

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

3шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

6

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
