(55.510.AG[02]) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, RIGHT SIDE HARNESS - C9127

Запчасти Case 580SN (55.510.AG[02]) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, RIGHT SIDE HARNESS - C9127 (55) - ELECTRICAL SYSTEMS

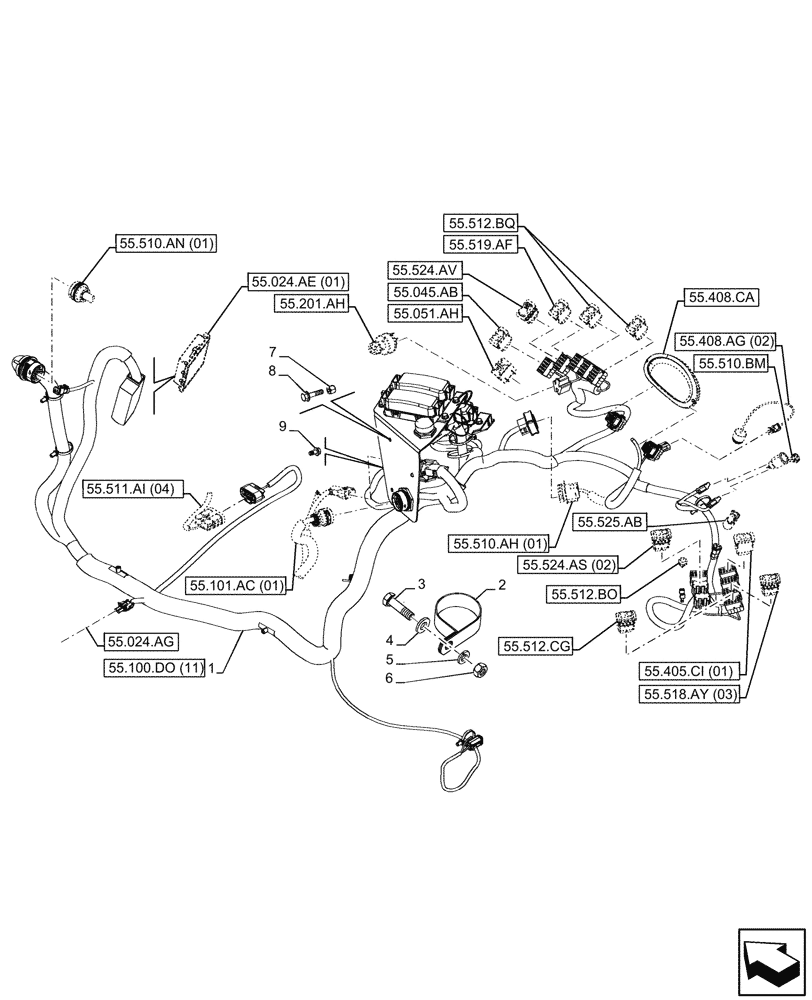

Схема запчастей Case 580SN - (55.510.AG[02]) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, RIGHT SIDE HARNESS - C9127 (55) - ELECTRICAL SYSTEMS
55.408.ca
6
2
4
9
3
1
8
5
7
55.100.do (11)
55.510.an (01)
55.024.ae (01)
55.051.ah
55.512.cg
55.101.ac (01)
55.518.ay (03)
55.511.ai (04)
55.510.ah (01)
55.524.av
55.524.as (02)
55.024.ag
55.045.ab
55.201.ah
55.512.bq
55.512.bo
55.525.ab
55.510.bm
55.519.af
55.408.ag (02)
55.405.ci (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47480931

WIRE HARNESS

Side Console, SPS/PS Transmission, ASSY

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

6

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
